| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RAU-300 |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Semi-automatic Longitudinal Seam Welding Machine For Steel Drum Straight Seam Welding Machine | Welding Diameter: | Ø300~Ø600mm |
|---|---|---|---|
| Types Of Welded Sheets: | Galvanized Sheet Steel/Low Carbon Sheet Steel/Stainless Steel Sheet | Welding Height: | ≤1000mm |
| Weld Thickness: | Galvanized Sheet Steel:0.3~1.0mm/Stainless Steel Sheet:0.3~1.0mm/Tin Plated Sheet:0.3~1.0mm | Welding Beat: | 5~8/min |
| Welding Speed: | 5~10m/min | Welding Copper Wire Diameter: | Ø2.0mm |
| Overlap: | 4mm Overlap | Cooling Water Flow Rate: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 100KVA |
| Highlight: | 4mm Overlap Straight Seam Welding Machine,longitudinal seam welder 100KVA,4mm Overlap longitudinal seam welder |
||
Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine for steel drum
|
Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum
Key words:
Semi-automatic longitudinal seam welding machine for steel drum
Resistance welding
Seam welding
Barrel welding
Sheet metal welding
Resistance welding
Product of Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum
Semi-automatic longitudinal seam welding machine for steel drum

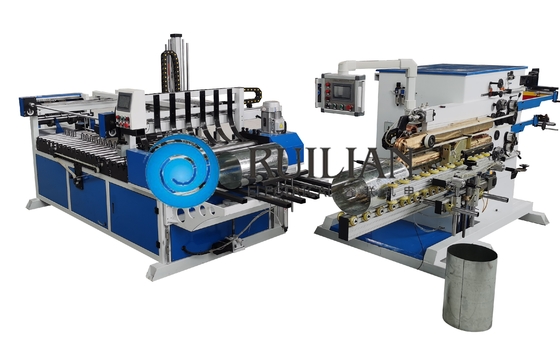

RAU-300 Air Duct Straight Seam Welder is the best-selling straight seam welder in the RU series after being equipped with an automatic rounding machine. On the basis of increasing the load-bearing capacity, the RAU-300 air duct straight seam welder runs more stably and is easier to operate under continuous working conditions. At the beginning of the design, the upgrade space for the order was fully considered,Therefore, all-round interface reservation has been carried out in the aspect of supporting peripheral equipment, which has laid a good foundation for the development of the RAU welding machine to the building block type automatic combination model in the future. The conductive electrode is made of Korean high-conductivity copper electrode material, which makes the heat transfer rate of welding current more efficient.
