| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RF-100B |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Semi-automatic Longitudinal Seam Welding Machine For Steel Drum Straight Seam Welding Machine | Welding Diameter: | Ø300~Ø500mm |
|---|---|---|---|
| Types Of Welded Sheets: | Galvanized Sheet Steel/Low Carbon Sheet Steel/Stainless Steel Sheet | Welding Height: | ≤1000mm |
| Weld Thickness: | Galvanized Sheet Steel:0.3~1.0mm/Stainless Steel Sheet:0.3~1.0mm/Tin Plated Sheet:0.3~1.0mm | Welding Beat: | 5~8/min |
| Welding Speed: | 5~10m/min | Welding Copper Wire Diameter: | Ø2.0mm |
| Overlap: | 3~6mm | Cooling Water Flow Rate: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 100KVA |
| Highlight: | welding 1000mm Sheet metal welding machine,Straight Seam Sheet metal welding machine,welding 1000mm longitudinal seam welder |
||
Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine for steel drum
|
Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum
Key words:
Semi-automatic longitudinal seam welding machine for steel drum
Resistance welding
Seam welding
Barrel welding
Sheet metal welding
Resistance welding
Product of Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum
Semi-automatic longitudinal seam welding machine for steel drum

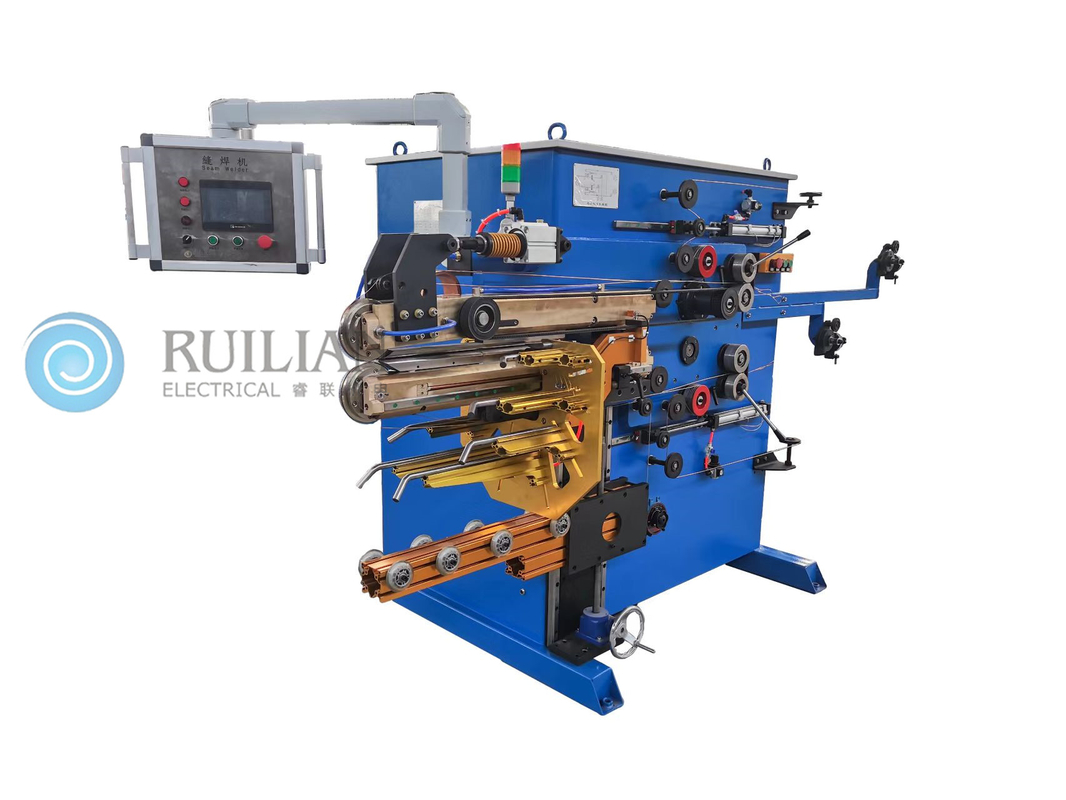

The RF-100B steel drum semi-automatic straight seam welding machine can complete the steel drum straight seam welding process on the same platform, and is mainly used for high-speed welding of 50-200 gallon steel corrugated drums in the chemical industry. The welding control power source of RF-100B steel drum semi-automatic straight seam welding machine adopts intermediate frequency welding process, so as to meet the standard requirements of the steel pail industry for the welding seam of the drum body, which can not only ensure the formation of effective weld nuggets and effective penetration in the thick steel plate, And it can meet the capacity requirements of the back-end equipment to tell the welding.
The RF-100B steel drum semi-automatic straight seam welder is an upgraded product based on the RF-100 straight seam welder. Its features are more convenient to operate and more stable in output. The semi-automatic resistance welding machine with more stable welding and more user-friendly operation can significantly reduce the management pressure of managers and bring a relaxed mood to operators at the work site, and has been favored by a large number of small and medium-sized business owners since it was put into the market.
