| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RF-100S |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Semi-automatic Longitudinal Seam Welding Machine For Steel Drum Straight Seam Welding Machine | Welding Diameter: | Ø200~Ø400mm |
|---|---|---|---|
| Types Of Welded Sheets: | Galvanized Sheet Steel/Low Carbon Sheet Steel/Stainless Steel Sheet | Welding Height: | ≤1000mm |
| Weld Thickness: | Galvanized Sheet Steel:0.3~1.0mm/Stainless Steel Sheet:0.3~1.0mm/Tin Plated Sheet:0.3~1.0mm | Welding Beat: | 5~8/min |
| Welding Speed: | 5~10m/min | Welding Copper Wire Diameter: | Ø2.0mm |
| Overlap: | 3~6mm | Cooling Water Flow Rate: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 100KVA |
| Highlight: | Semi automatic Seam Welding Machine 1.5T,Resistance Semi automatic Seam Welding Machine,longitudinal seam welding machine 1.5T |
||
Straight Seam Welding Machine Semi automatic longitudinal seam welding machine for steel drum
|
Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum
Key words:
Semi-automatic longitudinal seam welding machine for steel drum
Resistance welding
Seam welding
Barrel welding
Sheet metal welding
Resistance welding
Product of Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum
Semi-automatic longitudinal seam welding machine for steel drum

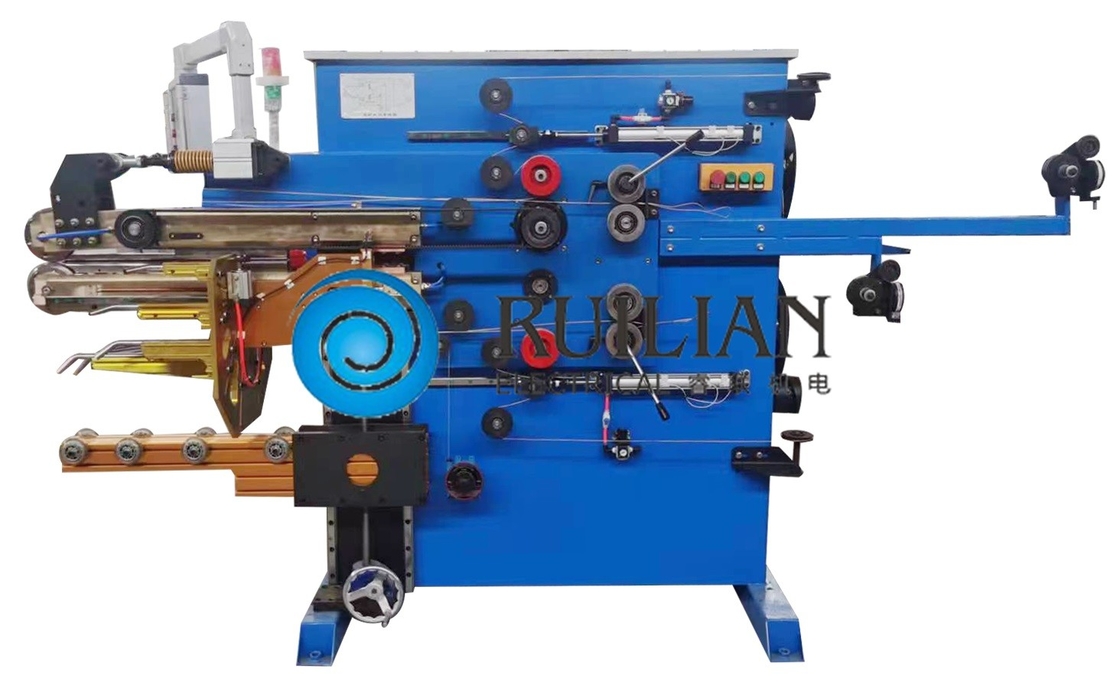

RF-100S steel drum semi-automatic straight seam welding machine is a miniaturized professional welding machine specially suitable for steel drum welding. The auxiliary welding bracket can support the welding workpiece in the 3-dimensional direction, so that the steel with high welding difficulty can be supported. Welding assistance with barrels or similar products can provide effective assistance in welding efficiency, welding yield and welding difficulty. RF-100S steel drum semi-automatic straight seam welding machine has added easy disassembly function on the auxiliary welding bracket,It can not only weld small-sized steel drums, but also weld small-diameter circular ventilation ducts after the bracket is removed. Thereby increasing the scope of application of RF-100S, making it highlight this advantage in terms of miniaturization to the greatest extent, and it is possible to weld the air duct on the construction site.
