| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RU-300 |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Semi-automatic Longitudinal Seam Welding Machine For Steel Drum Straight Seam Welding Machine | Welding Diameter: | Ø300~Ø600mm |
|---|---|---|---|
| Types Of Welded Sheets: | Galvanized Sheet Steel/Low Carbon Sheet Steel/Stainless Steel Sheet | Welding Height: | ≤1000mm |
| Weld Thickness: | Galvanized Sheet Steel:0.3~1.0mm/Stainless Steel Sheet:0.3~1.0mm/Tin Plated Sheet:0.3~1.0mm | Welding Beat: | 5~8/min |
| Welding Speed: | 5~10m/min | Welding Copper Wire Diameter: | Ø2.0mm |
| Overlap: | 3~6mm | Cooling Water Flow Rate: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 100KVA |
| Highlight: | longitudinal seam welding machine 0.4Mpa,Seam Welding Machine 8.5L/min,longitudinal Seam Welding Machine 0.4Mpa |
||

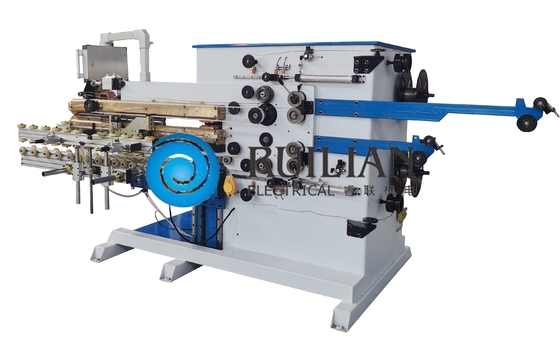

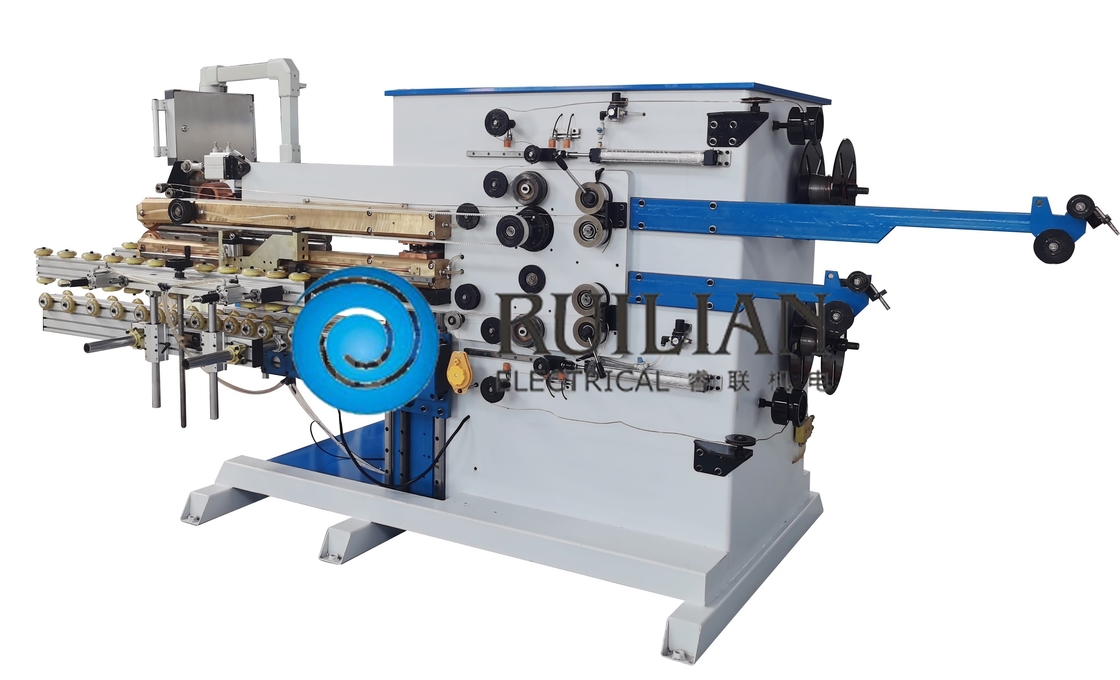

Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine for steel drum
|
Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum
Key words:
Semi-automatic longitudinal seam welding machine for steel drum
Resistance welding
Seam welding
Barrel welding
Sheet metal welding
Resistance welding
Product of Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum
Semi-automatic longitudinal seam welding machine for steel drum
RU-300 air duct straight seam welding machine is the basic model of RU series. It is developed by Ruilian on the basis of the original RF series welding machine for industrial air ducts and thick-walled steel drums and other large-diameter products with thicker thickness. Straight seam welding machine, it not only has the 3D electric adjustable welding auxiliary protective gear of RF-100B model, but also increases the load-bearing capacity on the basis of it. The RU-300 air duct straight seam welding machine runs under continuous operation more stable,Operation is easier and simpler. The conductive electrode of the welding machine adopts Korean high-conductivity copper electrode material, which makes the heat conversion rate of the welding current more efficient.
