| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RAU-300S |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Semi-automatic Longitudinal Seam Welding Machine For Steel Drum Straight Seam Welding Machine | Welding Diameter: | Ø150~Ø400mm |
|---|---|---|---|
| Types Of Welded Sheets: | Galvanized Sheet Steel/Low Carbon Sheet Steel/Stainless Steel Sheet | Welding Height: | ≤1000mm |
| Weld Thickness: | Galvanized Sheet Steel:0.3~1.0mm/Stainless Steel Sheet:0.3~1.0mm/Tin Plated Sheet:0.3~1.0mm | Welding Beat: | 5~8/min |
| Welding Speed: | 5~10m/min | Welding Copper Wire Diameter: | Ø2.0mm |
| Overlap: | 4mm | Cooling Water Flow Rate: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 100KVA |
| Highlight: | Galvanized sheet steel Straight Seam Welding Machine,Galvanized sheet steel Seam Welding Machine,Straight Seam Welding Machine Overlap 4mm |
||
Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine for steel drum
|
Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum
Key words:
Semi-automatic longitudinal seam welding machine for steel drum
Resistance welding
Seam welding
Barrel welding
Sheet metal welding
Resistance welding
Product of Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum
Semi-automatic longitudinal seam welding machine for steel drum

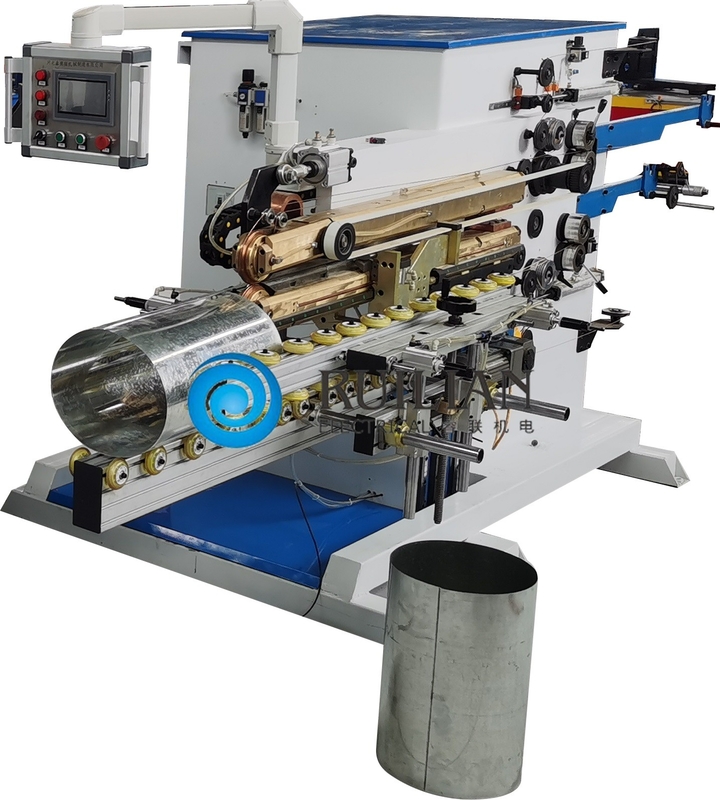

The RAU-300S resistance straight seam welder is an export-type straight seam welder in the RU series equipped with an intermediate frequency welding power source. Compared with the RAU-300H resistance straight seam welder, the welding range of the product has been adjusted appropriately to meet the needs of small diameter plates. Thick and thicker products demand the choice of customers. Nowadays, the occasions that require a clean environment in industrial ventilation ducts are very common, so the market demand for small-diameter stainless steel air ducts is very obvious. RAU-300S can completely fill the above market gaps.The characteristics of intermediate frequency welding are mainly reflected in two aspects: dense solder joints and small heat affected zone, so it is favored and valued by customers in the European and American markets.
