| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RF-100F |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Semi-automatic Longitudinal Seam Welding Machine For Steel Drum Straight Seam Welding Machine | Welding Diameter: | Ø300~Ø500mm |
|---|---|---|---|
| Types Of Welded Sheets: | Galvanized Sheet Steel/Low Carbon Sheet Steel/Stainless Steel Sheet | Welding Height: | ≤1000mm |
| Weld Thickness: | Galvanized Sheet Steel:0.3~1.0mm/Stainless Steel Sheet:0.3~1.0mm/Tin Plated Sheet:0.3~1.0mm | Welding Beat: | 5~8/min |
| Welding Speed: | 5~10m/min | Welding Copper Wire Diameter: | Ø2.0mm |
| Overlap: | 3~6mm | Cooling Water Flow Rate: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 100KVA |
| Highlight: | longitudinal Straight Seam Welding Machine,Straight Seam Welding Machine 1.5T,Overlap 6mm Straight Seam Welding Machine |
||
|

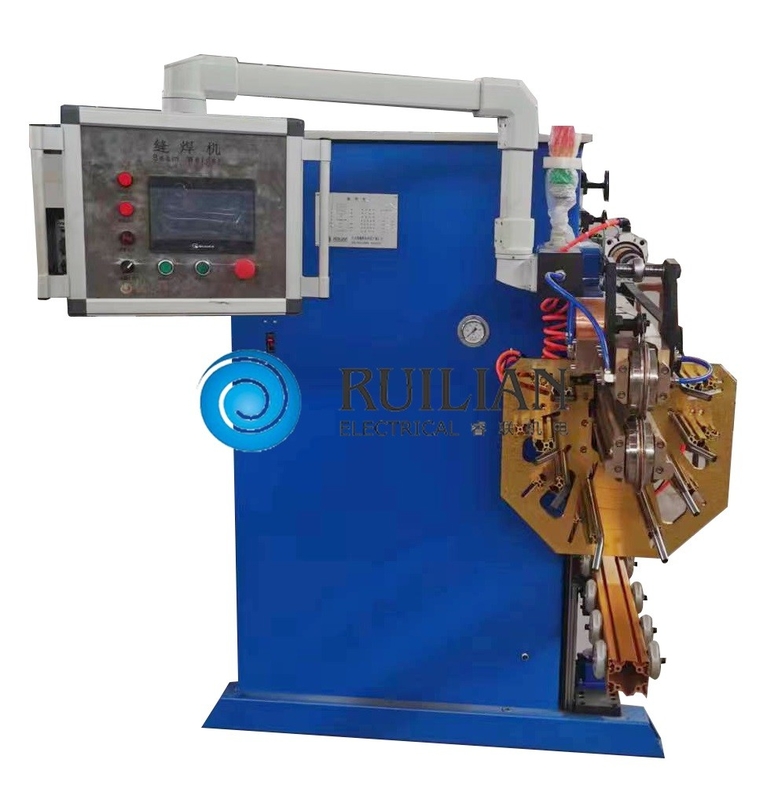

Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum
Key words:
Semi-automatic longitudinal seam welding machine for steel drum
Resistance welding
Seam welding
Barrel welding
Sheet metal welding
Resistance welding
Product of Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum
Semi-automatic longitudinal seam welding machine for steel drum
FB-11A Back-Feed Seam Welding Machine is a semi-automatic welding platform that can be upgraded to low speed requirements. It can meet the requirements of automatic work at low speed after being equipped with an automatic rounding machine. It is mainly used in the welding requirements of the chemical and food industries and can realize reliable resistance welding of thin steel plates below 0.35 mm. The small single overlay structure of fb series welding machine can maximize the use of heat generated by resistance welding, and the weld seam is beautiful and firm. Compared to the FB-9A model, the FB-11A turf welding machine can meet the welding requirements of large and large capacity products. In addition, the welder can weld small diameter pressure vessels after the welding configuration has been updated. The conductive electrode is made of highly conductive Korean copper electrode material, which makes the current heat conversion rate in high speed welding more efficient.
