| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RAU-300H |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Semi-automatic Longitudinal Seam Welding Machine For Steel Drum Straight Seam Welding Machine | Welding Diameter: | Ø300~Ø600mm |
|---|---|---|---|
| Types Of Welded Sheets: | Galvanized Sheet Steel/Low Carbon Sheet Steel/Stainless Steel Sheet | Welding Height: | ≤1000mm |
| Weld Thickness: | Galvanized Sheet Steel:0.3~1.0mm/Stainless Steel Sheet:0.3~1.0mm/Tin Plated Sheet:0.3~1.0mm | Welding Beat: | 5~8/min |
| Welding Speed: | 5~10m/min | Welding Copper Wire Diameter: | Ø2.0mm |
| Overlap: | 4mm | Cooling Water Flow Rate: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 100KVA |
| Highlight: | steel drum Straight Seam Welding Machine,steel drum longitudinal seam welding machine,longitudinal seam welding machine 100KVA |
||

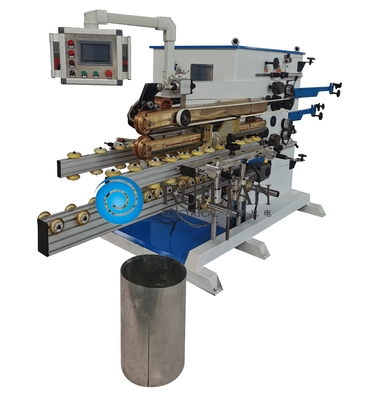

Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine for steel drum
|
Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum
Key words:
Semi-automatic longitudinal seam welding machine for steel drum
Resistance welding
Seam welding
Barrel welding
Sheet metal welding
Resistance welding
Product of Straight Seam Welding Machine Semi-automatic longitudinal seam welding machine For steel drum
Semi-automatic longitudinal seam welding machine for steel drum
The RAU-300H Resistance Channel Welder is a RU series export channel welder equipped with a medium frequency welding power source. Rau 300H air duct coagulation welder works more stable with continuous work and operation is easier and convenient. The RAU-300H straight sewing welding machine is primarily intended for companies that have higher requirements for product welds. The properties of intermediate frequency welding are mainly reflected in the two aspects of dense weld joints and small heat-affected areas, so it is preferred and appreciated by customers in the European and American markets.
The conductive electrode of the welding machine adopts Korean high-conductivity copper electrode material, which makes the heat conversion rate of the welding current more efficient.
