| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RF-80A |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Air Duct Straight Seam Welding Machine Resistance Seam Welding Machine | Welding Diameter: | Ø100~Ø1000mm |
|---|---|---|---|
| Types Of Welded Sheets: | Tin Plated Sheet/Galvanized Sheet Steel/Low Carbon Sheet Steel/Stainless Steel Sheet | Weld Thickness: | Tin Plated Sheet：0.3~1.0mm/Low Carbon Sheet Steel:0.3~1.0mm/Galvanized Sheet Steel:0.3~1.0mm/Stainless Steel Sheet:0.3~1.0mm |
| Welding Height: | 1000mm/1250mm | Welding Speed: | 5~9m/min |
| Overlap: | 6mm | Welding Copper Wire Diameter: | Ø2.0mm |
| Cooling Wate: | 0.4Mpa 8.5L/min | Compressed Air: | 0.8Mpa 600L/min ≤25°C |
| Welding Power: | 80KVA | Net Weight: | 1.3T |
| Highlight: | Sheet Metal Resistance Seam Welding Machine,Resistance Seam Welding Machine 80KVA,Automated Resistance Welder 80KVA |
||

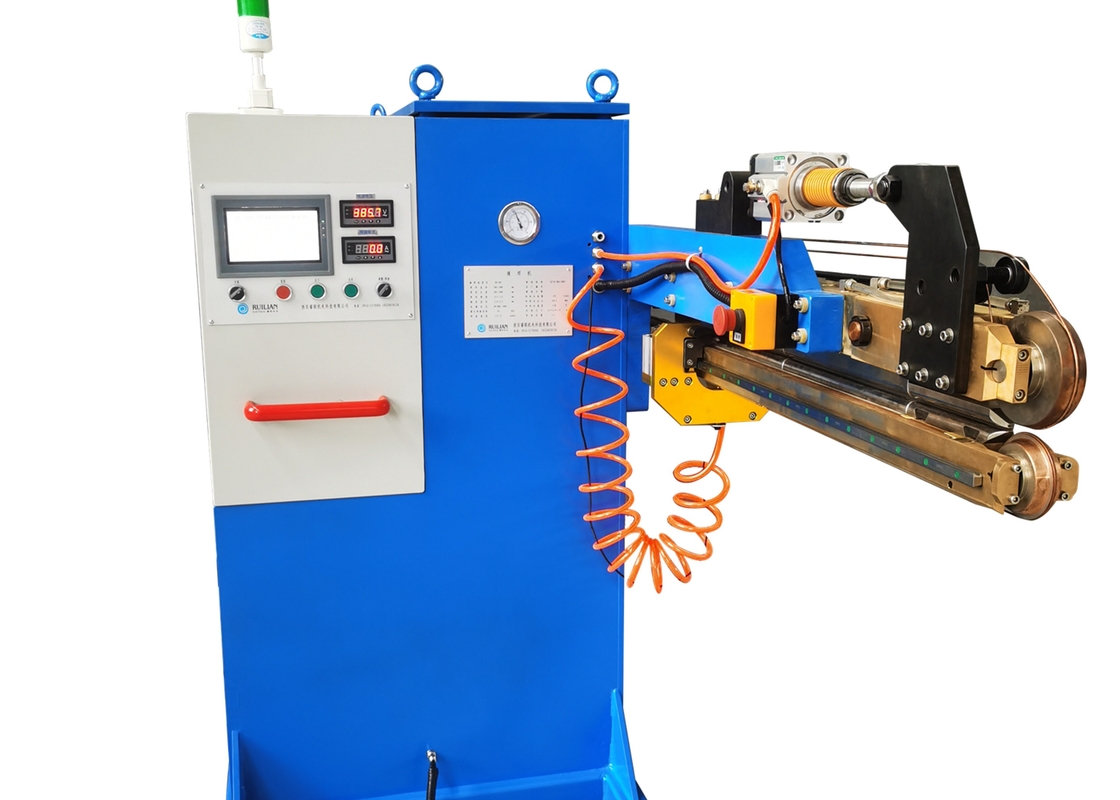

Resistance Seam Welding Machine Air Duct Straight Seam Welding Machine
| Welding diameter | Ø100~Ø1000mm |
|
Types of Welded Sheets |
Tin Plated Sheet Galvanized sheet steel Low carbon sheet steel Stainless steel sheet |
| Weld thickness | Low carbon sheet steel:0.3~1.0mm |
| Galvanized sheet steel:0.3~1.0mm | |
| Stainless steel sheet:0.3~1.0mm | |
| Tin Plated Sheet:0.3~1.0mm | |
| Welding height | 1000mm/1250mm |
| Welding speed5 | 5~9m/min |
| Overlap | 6mm |
|
Welding copper wire diameter |
Ø2.0mm |
| Cooling water flow rate | 0.4Mpa 8.5L/min |
| Compressed air | 0.8Mpa 600L/min ≤25°C |
| Welding power | 80KVA |
| Net weight | 1.3T |
Resistance Seam Welding Machine Air Duct Straight Seam Welding Machine
Seam welding
Duct welder
Vanitation pipe
Product of Resistance Seam Welding Machine Air Duct Straight Seam Welding Machine
Air Duct Straight Seam Welding Machine
The RF-80A air duct straight seam welding machine improves the stable operation structure of the equipment as a whole. The welding power source no longer uses the traditional AC output mode, and the output of the DC mode is more in line with the market needs of developed countries. The total welding power of the RF-80A air duct straight seam welder has been increased from the original 50KVA to 80KVA. The overall welding speed increase not only increases the production efficiency, but also greatly reduces the welding in operation with the assistance of the unique welding protective gear. Rejection rate.The conductive electrode of the welding machine adopts Korean high-conductivity copper electrode material, which makes the heat conversion rate of the welding current more efficient.
The equipment man-machine interface control, welding control unit and other aspects are all independently developed and designed, including the welding pressure and other important welding elements to fully realize the digital display of the man-machine interface. And according to the welding characteristics of galvanized sheet steel, a unique welding curve is designed in welding control, so that the professional needs of galvanized sheet welding can be more reliably completed.
At the same time, the welding machine has the function of WIFI cloud, which can collect real-time data, interact and maintain remotely, so that it has the humanized function of remote professional management.
The excellent welding characteristics of RF-80A air duct straight seam welding machine are used in aerospace vehicles, aircraft manufacturing, ventilation duct manufacturing, household appliances manufacturing and metal steel drums and other industries, especially for welding and processing low carbon sheet steel, galvanized sheet steel, The performance of stainless steel sheet and tin-plated sheet is particularly outstanding.
