| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RFA-100D |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Air Duct Straight Seam Welding Machine Resistance Seam Welding Machine | Welding Diameter: | Ø100~Ø1000mm |
|---|---|---|---|
| Types Of Welded Sheets: | Tin Plated Sheet/Galvanized Sheet Steel/Low Carbon Sheet Steel/Stainless Steel Sheet | Weld Thickness: | Tin Plated Sheet：0.3~1.0mm/Low Carbon Sheet Steel:0.3~1.0mm/Galvanized Sheet Steel:0.3~1.0mm/Stainless Steel Sheet:0.3~1.0mm |
| Welding Height: | 1000mm/1250mm | Welding Speed: | 3~9m/min |
| Overlap: | 6mm | Welding Copper Wire Diameter: | Ø2.0mm |
| Cooling Wate: | 0.4Mpa 8.5L/min | Compressed Air: | 0.8Mpa 600L/min ≤25°C |
| Welding Power: | 100KVA | Net Weight: | 1.3T |
| High Light: | Overlap 6mm Resistance Seam Welding Machine,seam welding machine 3m/min,Overlap 6mm seam welding machine |
||

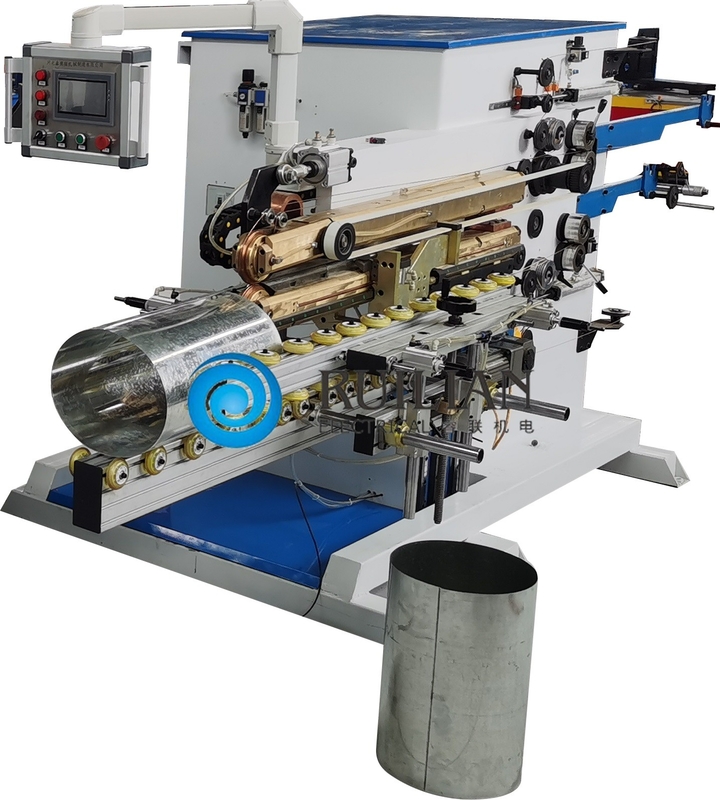

Resistance Seam Welding Machine Air Duct Straight Seam Welding Machine
| Welding diameter | Ø100~Ø1000mm |
|
Types of Welded Sheets |
Tin Plated Sheet Galvanized sheet steel Low carbon sheet steel Stainless steel sheet |
| Weld thickness | Low carbon sheet steel:0.3~1.0mm |
| Galvanized sheet steel:0.3~1.0mm | |
| Stainless steel sheet:0.3~1.0mm | |
| Tin Plated Sheet:0.3~1.0mm | |
| Welding height | 1000mm/1250mm |
| Welding speed | 3~9m/min |
| Overlap | 6mm |
|
Welding copper wire diameter |
Ø2.0mm |
| Cooling water flow rate | 0.4Mpa 8.5L/min |
| Compressed air | 0.8Mpa 600L/min ≤25°C |
| Welding power | 100KVA |
| Net weight | 1.3T |
Resistance Seam Welding Machine Air Duct Straight Seam Welding Machine
Seam welding
Duct welder
Vanitation pipe
Product of Resistance Seam Welding Machine Air Duct Straight Seam Welding Machine
Air Duct Straight Seam Welding Machine
RFA-100D air duct straight seam welder is a straight seam welder developed by Ruili Electric on the basis of the original RF-100D for industrial air ducts and thick-walled steel drums. It not only has the 3D electric Adjust the welding auxiliary protective gear, and also have an upgrade interface that can be upgraded to a fully automatic model, which can be upgraded in all aspects from the operating software and machine working hardware. The conductive electrode of the welding machine adopts Korean high-conductivity copper electrode material, which makes the heat conversion rate of the welding current more efficient.
The human-machine interface control, welding control unit and other aspects are all developed and designed independently, including welding pressure and other important welding elements to fully realize the digital display of the human-machine interface. And depending on the welding characteristics of galvanized sheets, a unique welding curve is designed for welding control, so that the professional needs of galvanized sheet welding can be better met.
The excellent welding characteristics of RFA-100B air duct straight seam welding machine are used in aerospace vehicles, aircraft manufacturing, ventilation duct manufacturing, household appliances manufacturing and metal steel drums and other industries, especially for welding and processing low carbon sheet steel, galvanized sheet steel, The performance of stainless steel sheet and tin-plated sheet is particularly outstanding.
