| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | FB-9A |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Device Name: | Electric Water Heater Shell Seam Welding Machine Side Seam Welding Machine | Welding Diameter: | Ø100~Ø300mm |
|---|---|---|---|
| Types Of Welded Sheets: | Stainless Steel Sheet | Welding Height: | ≤300mm |
| Weld Thickness: | Tin Plated Sheet：0.2~0.35mm/ Low Carbon Sheet Steel:0.2~0.35mm/Galvanized Sheet Steel:0.2~0.35mm/Stainless Steel Sheet:0.2~0.35mm | Welding Beat: | 3~6/min |
| Welding Speed: | 3~9m/min | Lapping Capacity: | 0.4mm |
| Welding Copper Wire Diameter: | Ø1.5mm | Cooling Water Flow Rate: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 10KVA |
| Highlight: | 9m/min Side Seam Welding Machine,10KVA longitudinal seam welder,longitudinal seam welder 9m/min |
||

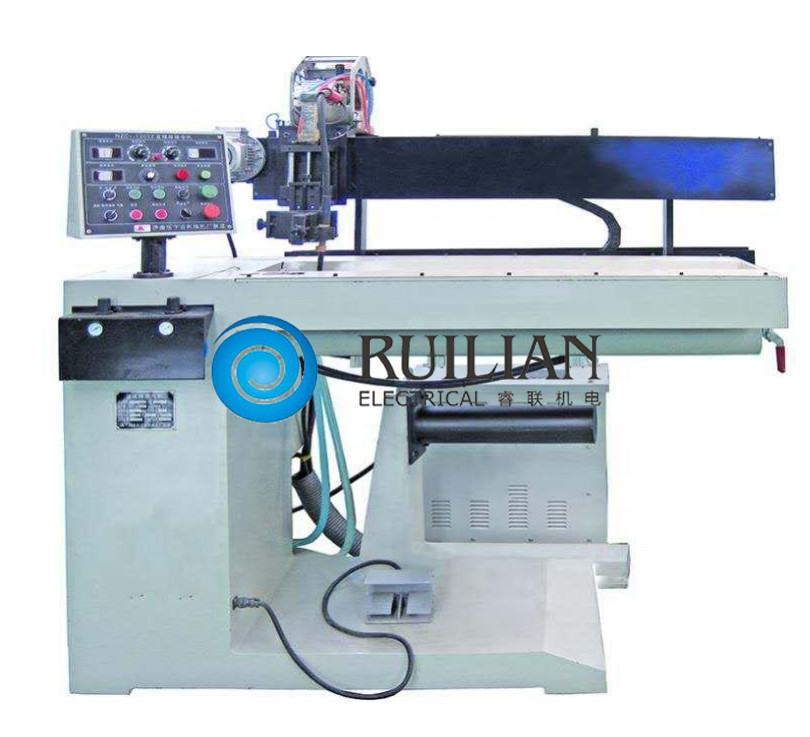

Side Seam Welding Machine Electric water heater shell seam welding machine
|
Side Seam Welding Machine Electric water heater shell seam welding machine
The electric heater has a welding machine
Resistance welding
Seam welding
Lron barrel welding
Sheet metal welding
Home appliance manufacturing
Product of Side Seam Welding Machine Electric water heater shell seam welding machine
Electric water heater shell seam welding machine
The FB-9A return seam welding machine is an upgradeable semi-automatic welding platform that is mainly used in the welding requirements of the chemical and food industries and can perform reliable resistance welding of thin steel plates below 0.35 mm. The unique small overlap structure of FB Series welders can maximize the use of heat generated by resistance welding, and the welds are beautiful and firm. The conductive electrode is made of Korean highly conductive copper electrode material, which makes the current-heat conversion rate in high-speed welding more efficient.
