| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | FN-3C |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Device Name: | Electric Water Heater Shell Seam Welding Machine Side Seam Welding Machine | Welding Diameter: | Ø100~Ø1000mm |
|---|---|---|---|
| Types Of Welded Sheets: | Stainless Steel Sheet | Welding Height: | ≤400mm |
| Weld Thickness: | Tin Plated Sheet：0.2~0.35mm/Low Carbon Sheet Steel:0.2~0.35mm/Galvanized Sheet Steel:0.2~0.35mm/Stainless Steel Sheet:0.2~0.35mm | Welding Beat: | 3~5/min |
| Welding Speed: | 3~6m/min | Lapping Capacity: | 3mm |
| Welding Copper Wire Diameter: | Ø1.5mm | Cooling Water Flow Rate: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 10KVA |
| Highlight: | Tin Plated Sheet side welding machine,side welding machine 10KVA,Tin Plated Sheet automatic seam welder |
||

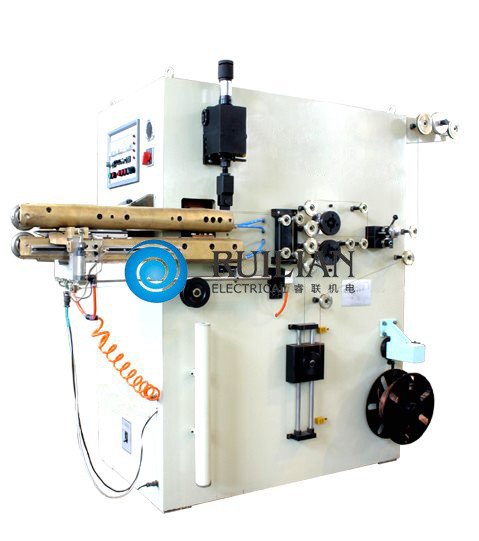

Side Seam Welding Machine Electric water heater shell seam welding machine
|
Side Seam Welding Machine Electric water heater shell seam welding machine
The electric heater has a welding machine
Resistance welding
Seam welding
Lron barrel welding
Sheet metal welding
Home appliance manufacturing
Product of Side Seam Welding Machine Electric water heater shell seam welding machine
Electric water heater shell seam welding machine
FN-3C semi-automatic straight seam welding machine is a straight seam resistance welding machine specially developed for small enterprises in the early stage or economically underdeveloped areas. The welding machine can be adapted to various operating occasions required by resistance welding, and can fully meet the seam welding needs of the industry in the initial stage, and is suitable for enterprises with small investment in the early stage.
The equipment man-machine interface control, welding control unit and other aspects are all independently developed and designed, including the welding pressure and other important welding elements to fully realize the digital display of the man-machine interface. And according to the welding characteristics of high carbon content steel sheets in the home appliance industry, three unique welding curves are designed in welding control, so that the professional needs of sheet welding can be more reliably and efficiently completed.
