| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | FB-11A |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Device Name: | Electric Water Heater Shell Seam Welding Machine Side Seam Welding Machine | Welding Diameter: | Ø150~Ø400mm |
|---|---|---|---|
| Types Of Welded Sheets: | Stainless Steel Sheet | Welding Height: | ≤500mm |
| Weld Thickness: | Tin Plated Sheet：0.2~0.35mm/ Low Carbon Sheet Steel:0.2~0.35mm/Galvanized Sheet Steel:0.2~0.35mm/Stainless Steel Sheet:0.2~0.35mm | Welding Beat: | 3~6/min |
| Welding Speed: | 3~9m/min | Lapping Capacity: | 0.4mm |
| Welding Copper Wire Diameter: | Ø1.5mm | Cooling Water Flow Rate: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 10KVA |
| Highlight: | Stainless steel sheet Side Seam Welding Machine,Resistance welding machine 500mm,Stainless steel sheet Resistance welding machine |
||

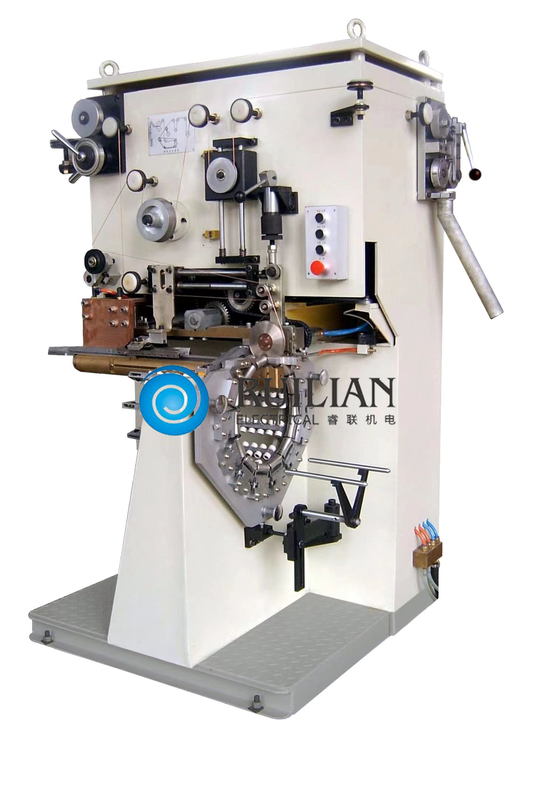

Side Seam Welding Machine Electric water heater shell seam welding machine
|
Side Seam Welding Machine Electric water heater shell seam welding machine
The electric heater has a welding machine
Resistance welding
Seam welding
Lron barrel welding
Sheet metal welding
Home appliance manufacturing
Product of Side Seam Welding Machine Electric water heater shell seam welding machine
Electric water heater shell seam welding machine
FB-11A refill seam welding machine is a semi-automatic welding platform that can be upgraded at low speed requirements. It can meet the requirements of automatic work at low speed after being equipped with an automatic rounding machine. It is mainly used in the welding requirements of the chemical and food industries and can perform reliable resistance welding of thin steel plates less than 0.35 mm. The unique small overlapping structure of fb series welding machine can maximize the use of heat generated by resistance welding, and the welding line is beautiful and strong. Compared with the FB-9A model, the FB-11A return seam welding machine can meet the welding requirements of large and large capacity products. In addition, welders can weld small diameter pressure vessels after the welding configuration has been updated. The conductive electrode is made of Korean highly conductive copper electrode material, which makes the current heat conversion rate in high-speed welding more efficient.
