| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RSA-400 |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Device Name: | Electric Water Heater Shell Seam Welding Machine Side Seam Welding Machine | Welding Diameter: | Ø300~Ø500mm |
|---|---|---|---|
| Types Of Welded Sheets: | Stainless Steel Sheet | Welding Height: | ≤1000mm |
| Weld Thickness: | Tin Plated Sheet：0.3~1.0mm/ Low Carbon Sheet Steel:0.3~1.0mm/ Galvanized Sheet Steel:0.3~1.0mm/ Stainless Steel Sheet:0.3~1.0mm | Welding Beat: | 3~6/min |
| Welding Speed: | 3~12m/min | Lapping Capacity: | 3mm |
| Welding Copper Wire Diameter: | Ø2.0mm | Cooling Water Flow Rate: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 60KVA |
| Highlight: | seam welder machine 60KVA,Tin Plated Sheet seam welder machine,Tin Plated Sheet side seam welder |
||
Side Seam Welding Machine Electric water heater shell seam welding machine
|
Side Seam Welding Machine Electric water heater shell seam welding machine
The electric heater has a welding machine
Resistance welding
Seam welding
Lron barrel welding
Sheet metal welding
Home appliance manufacturing
Product of Side Seam Welding Machine Electric water heater shell seam welding machine
Electric water heater shell seam welding machine

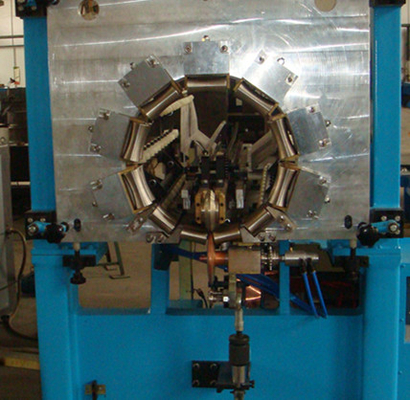

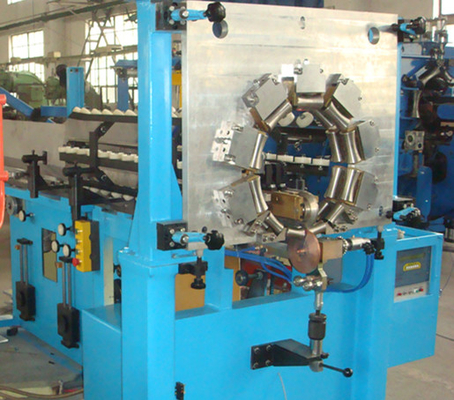

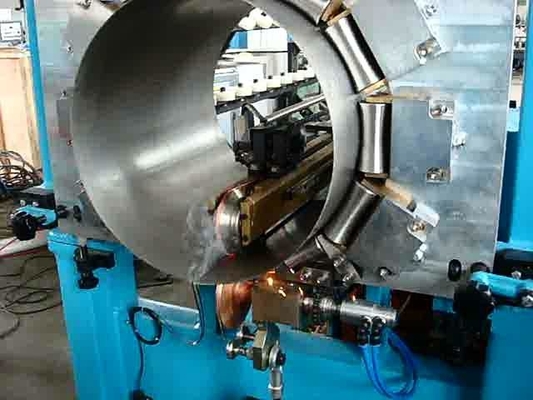

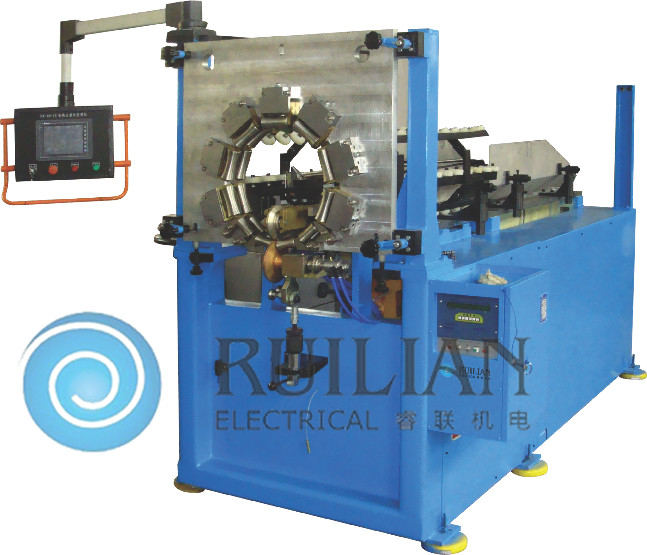

RSA-400 water heater shell seam welding machine is a semi-automatic welding platform with fully automatic upgrade interface, which is mainly used for the welding requirements of electric water heater shell. Reliable resistance welding of low carbon steel sheets under 1.0mm is possible. The conductive electrode of the welding machine adopts Korean high-conductivity copper electrode material, which makes the current-to-heat conversion rate more efficient in high-speed welding.
The equipment man-machine interface control, welding control unit and other aspects are all independently developed and designed, including the welding pressure and other important welding elements to fully realize the digital display of the man-machine interface. And according to the welding characteristics of high carbon content steel sheets in the home appliance industry, three unique welding curves are designed in welding control, so that the professional needs of sheet welding can be more reliably and efficiently completed.
RSA-400 water heater shell seam welding machine is a resistance welding machine specially developed for the circular barrel making and can making industry that needs industrial upgrading. Its complete welding function can meet the needs of various capacity upgrades, especially in high hardness , The performance of high carbon content carbon steel sheet welding work is particularly outstanding. At the same time, it can take into account the welding of conventional plates such as galvanized sheet, stainless steel sheet and tin-plated sheet.
