| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | FB-16 |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Device Name: | Electric Water Heater Shell Seam Welding Machine Side Seam Welding Machine | Welding Diameter: | Ø150~Ø400mm |
|---|---|---|---|
| Types Of Welded Sheets: | Stainless Steel Sheet | Welding Height: | ≤500mm |
| Weld Thickness: | Tin Plated Sheet：0.2~0.4mm/Low Carbon Sheet Steel:0.2~0.4mm/Galvanized Sheet Steel:0.2~0.4mm/Stainless Steel Sheet:0.2~0.4mm | Welding Beat: | 3~6/min |
| Welding Speed: | 3~15m/min | Lapping Capacity: | 0.4mm |
| Welding Copper Wire Diameter: | Ø1.5mm | Cooling Water Flow Rate: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 16KVA |
| Highlight: | Side Seam Welding Machine 16KVA,Electric water heater shell seam welding machine,seam welding machine 16KVA |
||

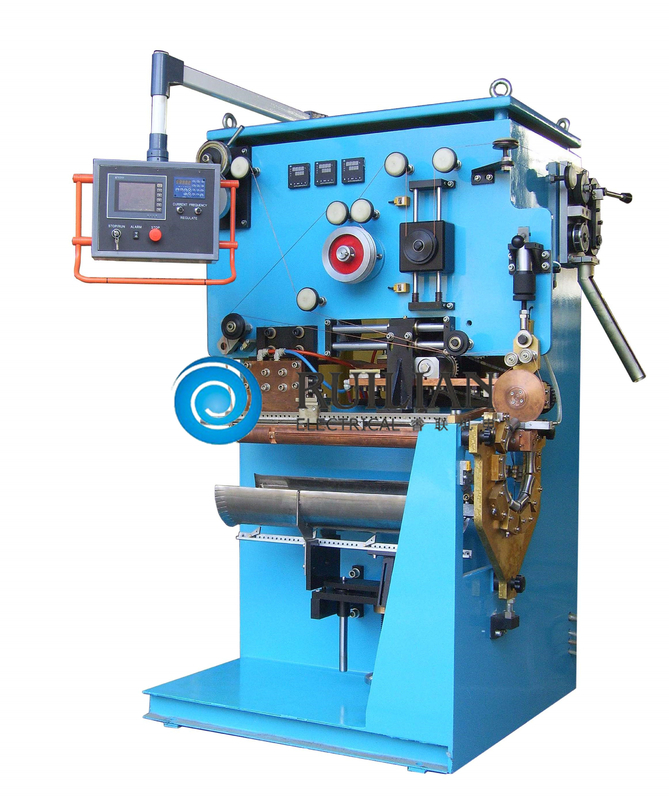

Side Seam Welding Machine Electric water heater shell seam welding machine
|
Side Seam Welding Machine Electric water heater shell seam welding machine
The electric heater has a welding machine
Resistance welding
Seam welding
Lron barrel welding
Sheet metal welding
Home appliance manufacturing
Product of Side Seam Welding Machine Electric water heater shell seam welding machine
Electric water heater shell seam welding machine
FB-16 Return Seam Welding Machine is a low-speed semi-automatic resistance welding machine specifically designed for foreign markets. It can meet the requirements of slow automatic working after being equipped with an automatic rounding machine. It is mainly used in the welding requirements of the chemical industry, food industry, small pressure vessel and other industries and can perform reliable resistance welding of thin steel plates below 0.4 mm. Compared to the FB-11A return seam welder, the FB-16 resistance welding machine has a faster and more efficient welding speed. In addition, due to the variety of foreign welding plates, the intelligent welding system can be unlocked in a variety of welding frequency modes to meet the welding requirements of various industries. The conductive electrode is made of Korean highly conductive copper electrode material, which makes the current-heat conversion rate in high-speed welding more efficient.
The equipment man-machine interface control, welding control unit and other aspects are all independently developed and designed, including the welding pressure and other important welding elements to fully realize the digital display of the man-machine interface. And according to the welding characteristics of high carbon content steel sheets in the home appliance industry, three unique welding curves are designed in welding control, so that the professional needs of sheet welding can be more reliably and efficiently completed.
