| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RAU-400 |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Device Name: | Electric Water Heater Shell Seam Welding Machine Side Seam Welding Machine | Welding Diameter: | Ø300~Ø500mm |
|---|---|---|---|
| Types Of Welded Sheets: | Stainless Steel Sheet | Welding Height: | ≤1000mm |
| Weld Thickness: | Tin Plated Sheet：0.2~1.0mm/Low Carbon Sheet Steel:0.2~1.0mm/Galvanized Sheet Steel:0.2~1.0mm/Stainless Steel Sheet:0.2~1.0mm | Welding Beat: | 3~6/min |
| Welding Speed: | 3~12m/min | Lapping Capacity: | 3mm |
| Welding Copper Wire Diameter: | Ø2.0mm | Cooling Water Flow Rate: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 60KVA |
| Highlight: | Lapping 3mm Side Seam Welding Machine,Stainless steel sheet Welding Machine,Water Heater Shell Seam Welding Machine |
||
Side Seam Welding Machine Electric water heater shell seam welding machine
|
Side Seam Welding Machine Electric water heater shell seam welding machine
The electric heater has a welding machine
Resistance welding
Seam welding
Lron barrel welding
Sheet metal welding
Home appliance manufacturing
Product of Side Seam Welding Machine Electric water heater shell seam welding machine
Electric water heater shell seam welding machine

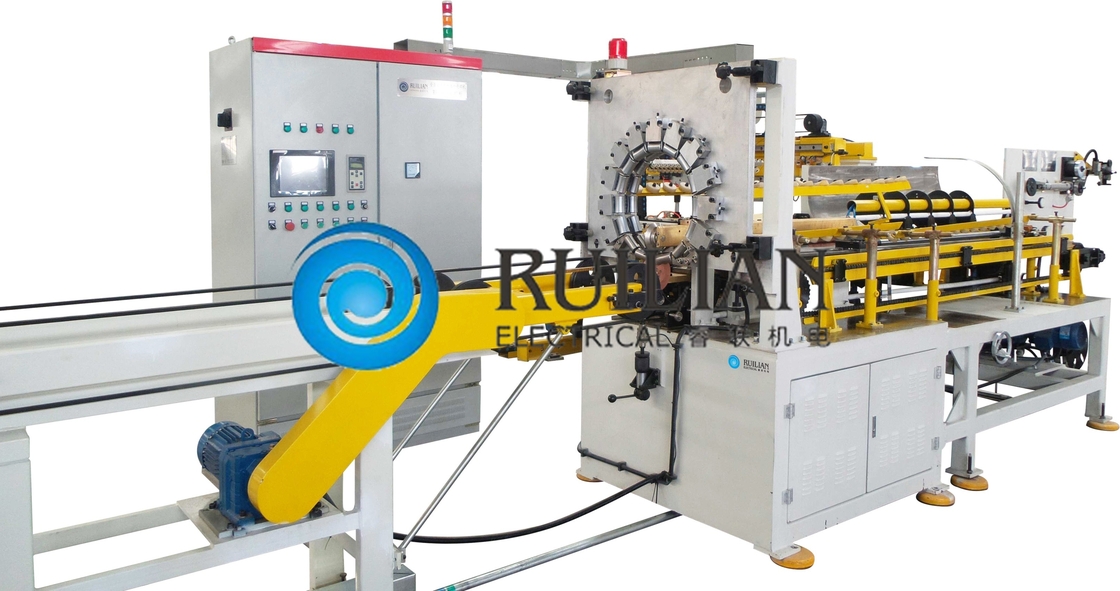

RAU-400 automatic straight seam welding machine is a fully automatic welding platform of resistance welding machine. After the plate stacking is completed, the plate cold bending, rounding, feeding and welding processes are all carried out automatically. Mainly used in home appliance manufacturing, chemical industry, food, ventilation and other industries with resistance welding requirements, it can perform reliable resistance welding on low carbon steel sheets below 1.0mm. The conductive electrode of the welding machine adopts Korean high-conductivity copper electrode material, which makes the current-to-heat conversion rate more efficient in high-speed welding.The welding machine is equipped with a variable low-frequency welding power source, which can be freely adjusted in the range of 100~300HZ, so as to meet the special needs of products with small overlap.
The equipment man-machine interface control, welding control unit and other aspects are all independently developed and designed, including the welding pressure and other important welding elements to fully realize the digital display of the man-machine interface. And according to the welding characteristics of high carbon content steel sheets in the home appliance industry, three unique welding curves are designed in welding control, so that the professional needs of sheet welding can be more reliably and efficiently completed.
