| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RFA-J80-1 |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Welding Diameter: | Ø80~Ø300mm | Device Name: | Air Duct Arc Seam Welding Machine Of Resistance Arc Welding Seam Welding Equipment |
|---|---|---|---|
| Welding Angle: | 45° 90° 15° 60° | Weld Thickness: | Stainless Steel Sheet：0.3~1.0mm/Low Carbon Sheet Steel:0.3~1.0mm/Galvanized Sheet Steel:0.3~1.0mm |
| Welding Speed: | 3~9m/min | Overlap: | 6mm |
| Welding Copper Wire Diameter: | Ø2.0 Mm | Cooling Water: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 50KVA |
| Highlight: | 1mm Stainless steel sheet Seam Welding Equipment,Seam Welding Equipment 9m/min,Resistance arc Seam Welding Equipment |
||
Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding
| Welding diameter | Ø80~Ø300mm |
| Welding angle | 45° 90° 15° 60° |
| Weld thickness | Low carbon sheet steel:0.3~1.0mm |
| Galvanized sheet steel:0.3~1.0mm | |
| Stainless steel sheet:0.3~1.0mm | |
| Welding speed | 3~9m/min |
| Overlap | 6mm |
| Welding copper wire diameter | Ø2.0 mm |
| Cooling water flow rate | 0.4Mpa 8.5L/min |
|
compressed air
|
0.8Mpa 600L/min ≤25°C |
| Welding power | 50KVA |
| Net weight | 1.3T |
Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding
Product of Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding

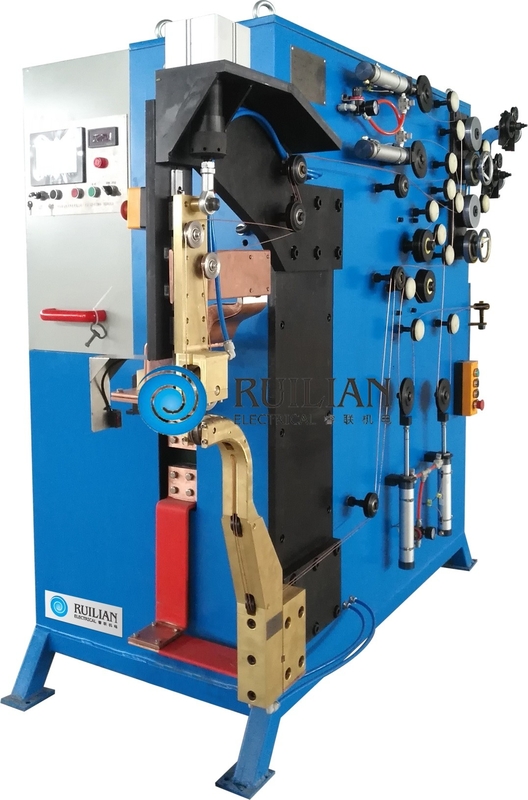

Air duct arc seam welding machine of Resistance arc welding
RFA-J80-1 arc resistance welding machine is suitable for welding the inner arc of the circular air duct stamping accessories for land and marine use.
The RFA-J80-1 arc welding machine is an upgraded model after improving the welding of some structural components and optimizing the welding electrical system on the basis of the RF-J80-1 basic elbow welding machine. The improved RFA-J80-1 welding pressure is more directly applied to the welding workpiece during the welding process, the structure is simpler than the previous model, and the maintenance in the later period is easier.It is used together with the RFA-J80-2 arc welding machine. In recent years, with the popularization and application of arc welding technology,It has been widely recognized in the fields of ventilation duct special-shaped parts and auto parts manufacturing.
RFA-80J-1 basic elbow welding machine is used in conjunction with RFA-80J-2elbow welding machine, which can perfectly weld arc weld products. This set of equipment can not only meet the welding needs of stamped air ducts, but also work in the welding needs of short straight products, so it is widely used in shipbuilding, industrial air ducts, pharmaceutical industries and other fields. RFA-80J-1 basic paste tube welding machine can weld mild steel sheet, galvanized sheet and stainless steel sheet.
