| Welding Diameter: | Ø25~Ø300mm | Device Name: | Air Duct Arc Seam Welding Machine Of Resistance Arc Welding Seam Welding Equipment |
|---|---|---|---|
| Weld Thickness: | Stainless Steel Sheet：0.2~0.5mm/Low Carbon Sheet Steel:0.2~0.5mm/Galvanized Sheet Steel:0.2~0.5mm | Welding Speed: | 1~3m/min |
| Welding Copper Wire Diameter: | Ø1.38 Mm | Cooling Water: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 30KVA |
| High Light: | resistance seam welding equipment 30KVA,OD 25mm resistance seam welding equipment,OD 300mm resistance seam welding equipment |
||
Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding
| Welding diameter | Ø25~Ø300mm |
| Weld thickness | Low carbon sheet steel:0.2~0.5mm |
| Galvanized sheet steel:0.2~0.5mm | |
| Stainless steel sheet:0.2~0.5mm | |
| Welding speed | 1~3m/min |
| Overlap | 6mm |
| Welding copper wire diameter | Ø1.38 mm |
| Cooling water flow rate | 0.4Mpa 8.5L/min |
|
compressed air
|
0.8Mpa 600L/min ≤25°C |
| Welding power | 30KVA |
| Net weight | 1T |
Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding
Product of Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding

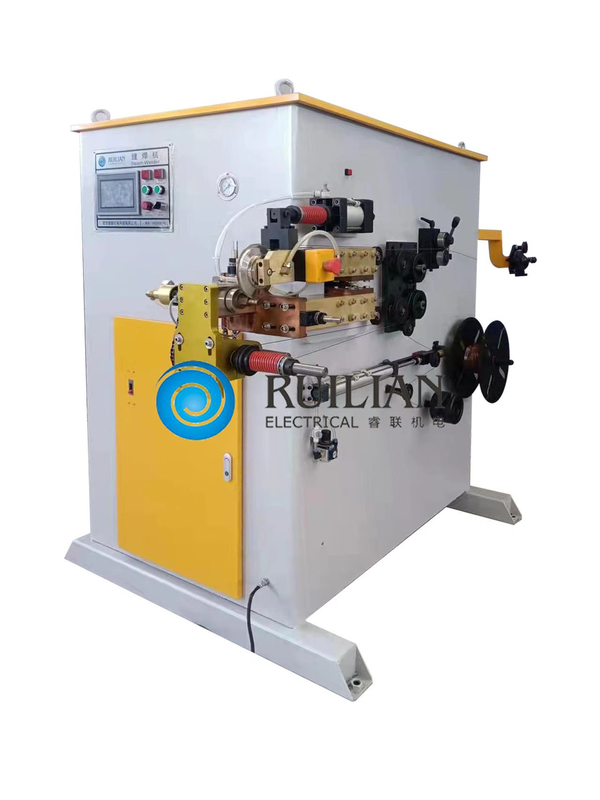

Air duct arc seam welding machine of Resistance arc welding
The RFA-J25 basic ring seam resistance welding machine is suitable for welding applications of circular air ducts and household appliances. RFA-J25 basic welding ring seam resistance machine is a special resistance welding machine with high practical value, which is suitable for application scenarios such as blunting the round tube. The air duct and appliance industry requires welding scenarios in which thin-arm round tubes are connected and resistance welding is a perfect solution.
