| Welding Diameter: | Ø80~Ø300mm | Device Name: | Air Duct Arc Seam Welding Machine Of Resistance Arc Welding Seam Welding Equipment |
|---|---|---|---|
| Welding Angle: | 45° 90° 15° 60° | Weld Thickness: | Stainless Steel Sheet：0.3~1.0mm/Low Carbon Sheet Steel:0.3~1.0mm/Galvanized Sheet Steel:0.3~1.0mm |
| Welding Speed: | 3~9m/min | Overlap: | 6mm |
| Welding Copper Wire Diameter: | Ø2.0 Mm | Cooling Water: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 50KVA |
| High Light: | Seam Welding Equipment 9m/min,50KVA Seam Welding Equipment,Welding angle 60° Seam Welding Equipment |
||
Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding
| Welding diameter | Ø80~Ø300mm |
| Welding angle | 45° 90° 15° 60° |
| Weld thickness | Low carbon sheet steel:0.3~1.0mm |
| Galvanized sheet steel:0.3~1.0mm | |
| Stainless steel sheet:0.3~1.0mm | |
| Welding speed | 3~9m/min |
| Overlap | 6mm |
| Welding copper wire diameter | Ø2.0 mm |
| Cooling water flow rate | 0.4Mpa 8.5L/min |
|
compressed air
|
0.8Mpa 600L/min ≤25°C |
| Welding power | 50KVA |
| Net weight | 1.3T |
Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding
Product of Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding

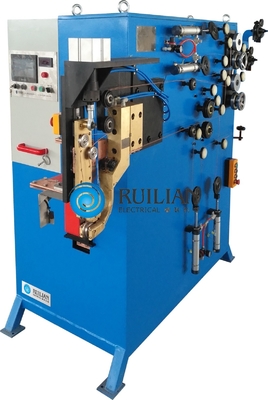

Air duct arc seam welding machine of Resistance arc welding
The arc resistance welding machine rfa-j80-2 is suitable for welding the inner arc of circular air duct stamping accessories for land and sea use. The arc welding machine rfa-j80-2 is an updated model after improving the welding of some structural components and optimizing the electric welding system based on the basic elbow welding machine rf-j80-2. During the improved rfa-j80-2 welding process, the welding pressure is applied more directly to the welding part and the structure is more concise than the previous model. Further maintenance is more convenient, it is used with the arc welding machine rfa-j80-2. In recent years, with the popularization and application of the arc welding process, it has been widely recognized in the fields of special parts ventilation ducts and auto parts manufacturing.
RFA-80J-2 basic elbow welding machine is used in conjunction with RFA-80J-1elbow welding machine, which can perfectly weld arc weld products. This set of equipment can not only meet the welding needs of stamped air ducts, but also work in the welding needs of short straight products, so it is widely used in shipbuilding, industrial air ducts, pharmaceutical industries and other fields. RFA-80J-2 basic paste tube welding machine can weld mild steel sheet, galvanized sheet and stainless steel. sheet.
