| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RF-J80-2 |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Welding Diameter: | Ø80~Ø300mm | Device Name: | Air Duct Arc Seam Welding Machine Of Resistance Arc Welding Seam Welding Equipment |
|---|---|---|---|
| Welding Angle: | 45° 90° 15° 60° | Weld Thickness: | Stainless Steel Sheet：0.3~0.6mm/Low Carbon Sheet Steel:0.3~0.8mm/Galvanized Sheet Steel:0.3~0.8mm |
| Welding Speed: | 3~9m/min | Overlap: | 6mm |
| Welding Copper Wire Diameter: | Ø2.0 Mm | Cooling Water: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 50KVA |
| Highlight: | Welding angle 45 Seam Welding machine,Seam Welding machine of Resistance 50KVA,Overlap 6mm Seam Welding machine |
||
Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding
| Welding diameter | Ø80~Ø300mm |
| Welding angle | 45° 90° 15° 60° |
| Weld thickness | Low carbon sheet steel:0.3~0.8mm |
| Galvanized sheet steel:0.3~0.8mm | |
| Stainless steel sheet:0.3~0.6mm | |
| Welding speed | 3~9m/min |
| Overlap | 6mm |
| Welding copper wire diameter | Ø2.0 mm |
| Cooling water flow rate | 0.4Mpa 8.5L/min |
|
compressed air
|
0.8Mpa 600L/min ≤25°C |
| Welding power | 50KVA |
| Net weight | 1.3T |
Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding
Product of Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding

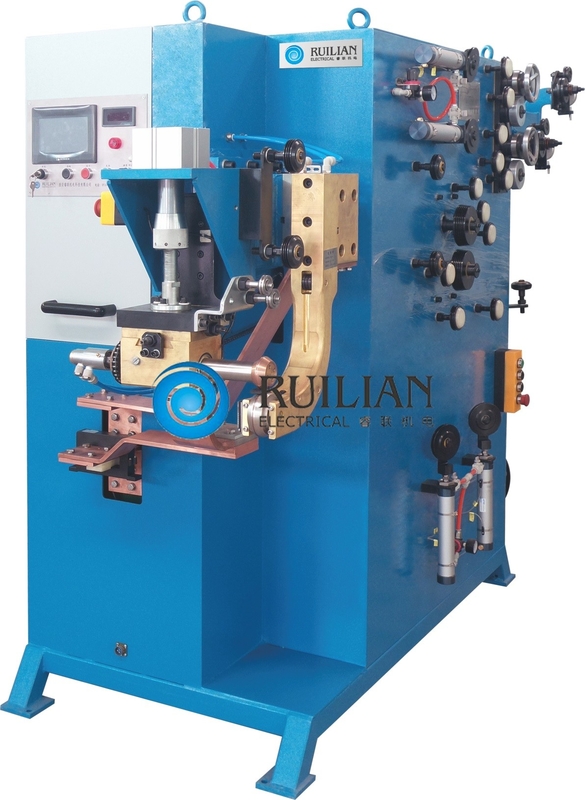

Air duct arc seam welding machine of Resistance arc welding
RF-J80-2 basic type pipe bending welding machine is suitable for welding the inner arc of the stamping accessories of the land circular air duct.
RF-J80-2 basic pipe elbow welding machine adopts welding three-dimensional design frame, confirms the arc welding curve point by point, and ensures the smooth movement of the welding workpiece. The welding of the inner arc in the process requires a more professional operation level, so the welding speed of the inner seam of the product is slower than that of the outer seam welding. In recent years, with the popularization and application of arc welding process, it has been widely recognized in the fields of ventilation duct special-shaped parts and auto parts manufacturing.
RF-80J-2 basic elbow welding machine is used in conjunction with RF-80J-1elbow welding machine, which can perfectly weld arc weld products. This set of equipment can not only meet the welding needs of stamped air ducts, but also work in the welding needs of short straight products, so it is widely used in shipbuilding, industrial air ducts, pharmaceutical industries and other fields. RF-80J-1 basic paste tube welding machine can weld mild steel sheet, galvanized sheet and stainless steel sheet.
