| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RF-J80-1 |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Welding Diameter: | Ø80~Ø300mm | Device Name: | Air Duct Arc Seam Welding Machine Of Resistance Arc Welding Seam Welding Equipment |
|---|---|---|---|
| Welding Angle: | 45° 90° 15° 60° | Weld Thickness: | Stainless Steel Sheet：0.3~0.6mm/Low Carbon Sheet Steel:0.3~0.8mm/Galvanized Sheet Steel:0.3~0.8mm |
| Welding Speed: | 3~9m/min | Overlap: | 6mm |
| Welding Copper Wire Diameter: | Ø2.0 Mm | Cooling Water: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 50KVA |
| High Light: | 50KVA Seam Welding Equipment,Duct Seam Welding Machine 45,50KVA Duct Seam Welding Machine |
||
Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding
| Welding diameter | Ø80~Ø300mm |
| Welding angle | 45° 90° 15° 60° |
| Weld thickness | Low carbon sheet steel:0.3~0.8mm |
| Galvanized sheet steel:0.3~0.8mm | |
| Stainless steel sheet:0.3~0.6mm | |
| Welding speed | 3~9m/min |
| Overlap | 6mm |
| Welding copper wire diameter | Ø2.0 mm |
| Cooling water flow rate | 0.4Mpa 8.5L/min |
|
compressed air
|
0.8Mpa 600L/min ≤25°C |
| Welding power | 50KVA |
| Net weight | 1.3T |
Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding
Product of Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding

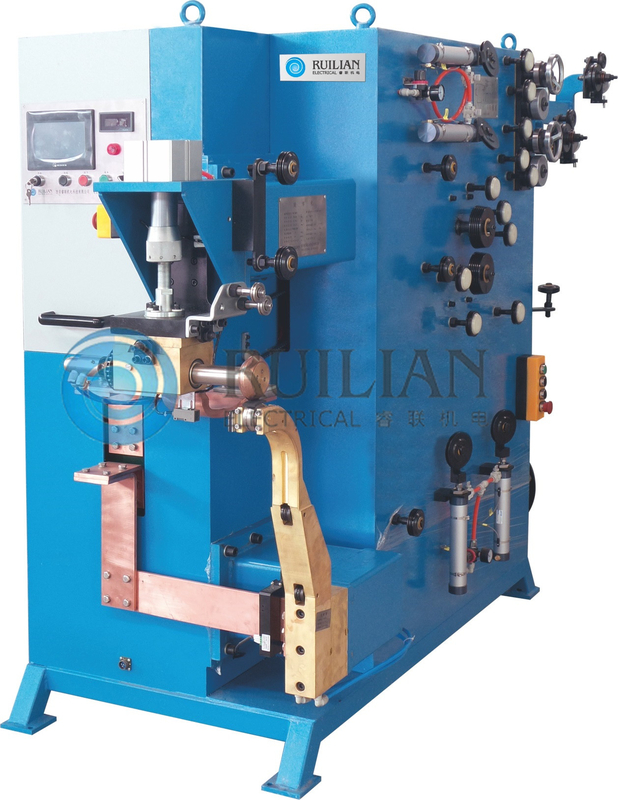

Air duct arc seam welding machine of Resistance arc welding

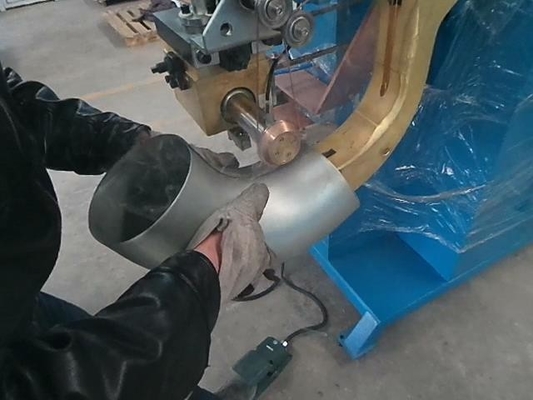

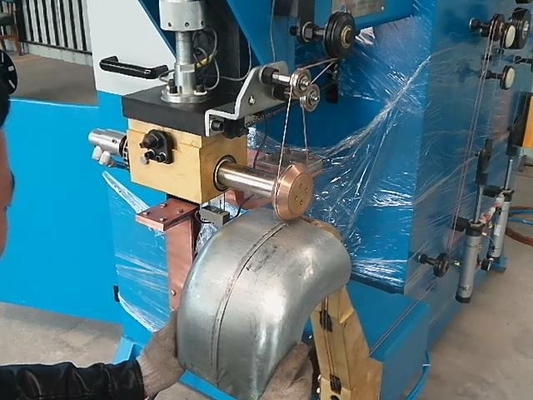

RF-80J-1 basic type pipe bending welding machine is suitable for welding the outer arc of the stamping accessories of the land circular air duct.
The RF-80J-1 basic pipe bending welding machine adopts a welding three-dimensional design frame, confirms the arc welding curve point by point, and ensures the smooth movement of the welding workpiece.
The equipment man-machine interface control, welding control unit and other aspects are all independently developed and designed, including welding current, speed and other important welding elements to fully realize the digital display of the man-machine interface. And according to the welding characteristics of galvanized sheet steel, a unique welding curve is designed in welding control, so that the professional needs of galvanized sheet welding can be more reliably completed.

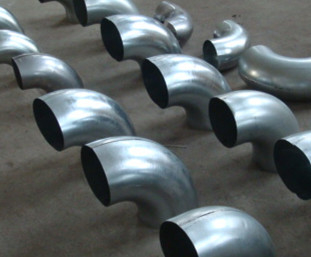

The RF-80J-1 basic elbow welding machine is used in conjunction with the RF-80J-2 elbow welding machine, which can perfectly weld arc welding products. This set of equipment can not only meet the welding needs of stamped air ducts, but also work on the welding needs of straight short products, making it widely used in shipbuilding, industrial air ducts, pharmaceutical industries and other fields. The RF-80J-1 basic mud tube welding machine can weld light steel sheets, galvanized sheets and stainless steel sheets.
