| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RF-DZ130E |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Resistance Spot Welding Machine Ac Spot Welder | Types Of Welded Sheets: | Tin Plated Sheet/Galvanized Sheet Steel/Low Carbon Sheet Steel/Stainless Steel Sheet |
|---|---|---|---|
| Weld Thickness: | Low Carbon Sheet Steel:0.2~4.0mm/Galvanized Sheet Steel:0.2~4.0mm/Stainless Steel Sheet:0.2~4.0mm/Tin Plated Sheet:0.2~4.0mm | Cooling Water Flow Rate: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 35KVA /63KVA/75KVA/100KVA/150KVA |
| Highlight: | Galvanized Sheet Resistance Spot Welding Machine,Resistance Spot Welding Machine 35KVA,AC Resistance Spot Welder 35KVA |
||

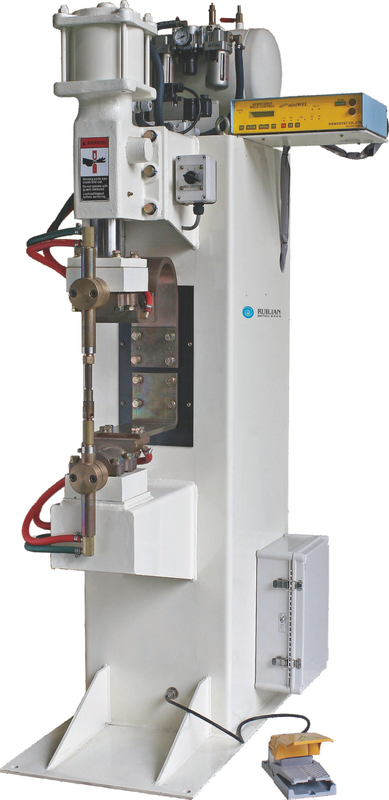

Resistance Spot Welding Machine Ac spot welder Tin Plated Sheet/Galvanized sheet steell
|
Resistance Spot Welding Machine Ac spot welder
Ac spot welderKey word:
Resistance spot welding
Resistance welding projection welding
Air duct weiding
Sheet metal welding
Duct welder
Vanitation pipe
Product of Resistance Spot Welding Machine Ac spot welder
Ac spot welder
Compared with RF-DZ130A, RF-DZ130E intermediate frequency spot welding machine adopts welding electrode arm. Under this configuration, it is more convenient and durable to upgrade RF-DZ130E intermediate frequency spot welding machine to automatic feeding spot welding. The multi-slot setting of the lower electrode for welding is more convenient for fixing the auxiliary welding fixture. The welding machine is equipped with an intermediate frequency spot welding power source, and the three-phase balanced discharge has no pollution to the power grid and stable discharge is its greatest advantage.Compared with the welding characteristics of the AC spot welding machine, its welding nugget is more beautiful and the quality is much higher than the welding effect of the power frequency 50HZ. The metal sheet for special requirements can be customized according to customer requirements. Because the equipment is equipped with a large-diameter welding cylinder, it is suitable for welding of special plates with high carbon content.
