| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | REX-100 |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | U.S.+55000 dollars~60000 dollars+ 1 devices |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Lengthening Straight Seam Welding Machine Long Seam Welding Machine | Welding Diameter: | Ø100~Ø1000mm |
|---|---|---|---|
| Types Of Welded Sheets: | Stainless Steel Sheet/Tin Plated Sheet/Galvanized Sheet Steel/Low Carbon Sheet Steel | Weld Thickness: | Tin Plated Sheet：0.3~1.0mm/Low Carbon Sheet Steel:0.3~1.0mm/Galvanized Sheet Steel:0.3~1.0mm/Stainless Steel Sheet:0.3~1.0mm |
| Maximum Welding Height: | MAX：1800mm | Welding Speed: | 3~6m/min |
| Welding Copper Wire Diameter: | Ø2.0mm | Cooling Water Flow Rate: | 0.4Mpa 8.5L/min |
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 60KVA |
| Highlight: | Seam Welding Machine 0.4Mpa 8.5L/min,Long Straight Seam Welding Machine 60KVA,RUILIAN Long Straight Seam Welding Machine |
||
Long Seam Welding Machine Lengthening Straight Seam Welding Machine
|
Lengthening Straight Seam Welding Machine Long Seam Welding Machine
key words
Lengthening Straight Seam Welding Machine
Resistance welding
Seam welding
Air duct weiding
Sheet metal welding
Galvanized sheet welding
Low carbon sheet welding
Stainless steel sheet
Product of Lengthening Straight Seam Welding Long Seam Welding Machine

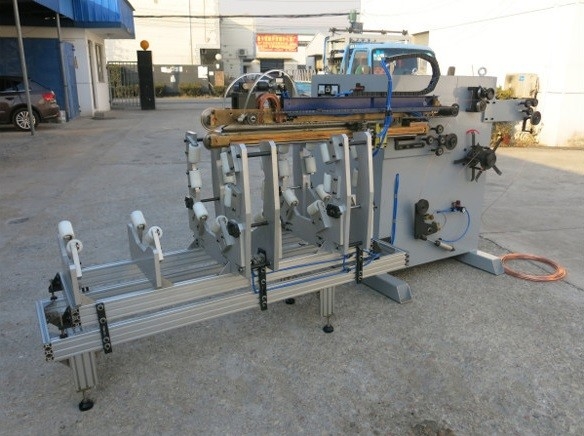

Lengthening Straight Seam Welding Machine
REX-100 straight seam welding machine is a special welding equipment specially designed for the welding of super-long welding requirements in the home appliance manufacturing industry, such as: air-energy water heater shells or products with similar structures, etc., the maximum one-time welding length can reach 1800mm. The conductive electrode of the welding machine adopts Korean high-conductivity copper electrode material, which makes the heat conversion rate of the welding current more efficient.
The welding machine combines the sizing structure of the automatic welding machine tunnel welding, which effectively guarantees the lap defects caused by the super-long heat accumulation effect of the welding seam.
The equipment man-machine interface control, welding control unit and other aspects are all independently developed and designed, including the welding pressure and other important welding elements to fully realize the digital display of the man-machine interface. And according to the welding characteristics of galvanized sheet steel and high-hardness carbon steel sheet in the home appliance industry, a unique welding curve is designed in welding control, so that the professional needs of welding can be more reliably completed.
The unique structure of the REX-100 lengthened straight seam welder can not only meet the welding requirements of conventional straight seams, but also highlight its advantages in the application environment of special housings for household appliances. And for the welding field of 1500mm widened plate, it has the advantages of high efficiency and low cost that conventional machines cannot match.
