| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RAU-300 |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Automatic Seam Welding Machine For Steel Drums | Welding Diameter: | Ø300~Ø500mm |
|---|---|---|---|
| Types Of Welded Sheets: | Galvanized Sheet Steel/Low Carbon Sheet Steel/Stainless Steel Sheet | Welding Height: | ≤1000mm |
| Weld Thickness: | Low Carbon Sheet Steel:0.3~1.2mm/Galvanized Sheet Steel:0.3~1.2mm/ Stainless Steel Sheet:0.3~1.2mm | Welding Beat: | 3~6/min |
| Welding Speed: | 5~9m/min | Overlap: | 4~6mm |
| Cooling Water Flow Rate: | 0.4Mpa 8.5L/min | Compressed Air: | 0.8Mpa 600L/min ≤25°C |
| Welding Power: | 100KVA | Net Weight: | 3T |
| Highlight: | Automatic seam welding machine 3T,Galvanized sheet steel automatic seam welder,automatic seam welder 3T |
||
|
Automatic seam welding machine for steel drums
Key words:
Automatic seam welding machine for steel drums
Resistance welding
Lntermediate frequency welding
Seam welding
Barrel welding
Sheet metal welding
Resistance welding
Product of Automatic seam welding machine for steel drums
Automatic seam welding machine for steel drums

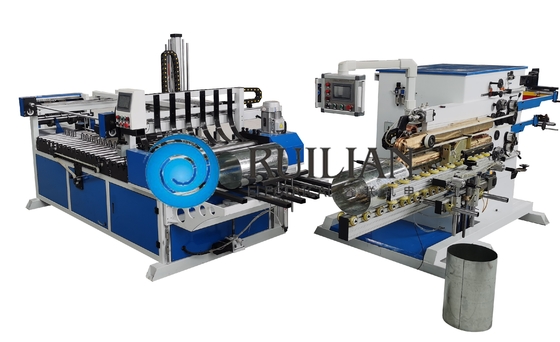

RAU-300 steel drum automatic seam welding machine can complete rolling, welding and other processes on the same platform, but since the RAU-300 welding platform is based on semi-automatic welding machine configuration automatic rolling machine relies on one operator for transfer connection, so welding The speed cannot be too fast, but the product changeover is fast and flexible, and the low initial investment cost is also an incomparable advantage of the automatic high-speed welding machine. The products are mainly used for high-speed welding of steel corrugated drums of 200 gallons and below in the chemical industry.The welding control unit of the equipment adopts intermediate frequency welding, which can further ensure the professional requirements of the welding seam in terms of welding output.
The high welding efficiency of the automatic seam welding machine has established its unparalleled criticality and importance in the field of steel drum welding. Moreover, it also has an outstanding reputation in the welding industry of the inner shell of the thin steel plate structure of household appliances, which is a technical barrier that cannot be broken by conventional resistance welding equipment.
