| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RSD-600 |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Automatic Seam Welding Machine | Welding Diameter: | Ø300~Ø500mm |
|---|---|---|---|
| Types Of Welded Sheets: | Galvanized Sheet Steel/Low Carbon Sheet Steel/Stainless Steel Sheet | Welding Height: | ≤1000mm |
| Weld Thickness: | Low Carbon Sheet Steel:0.3~1.2mm/Galvanized Sheet Steel:0.3~1.2mm/ Stainless Steel Sheet:0.3~1.2mm | Welding Beat: | 5~8/min |
| Welding Speed: | 5~10m/min | Overlap: | 6mm |
| Cooling Water Flow Rate: | 0.4Mpa 8.5L/min | Compressed Air: | 0.8Mpa 600L/min ≤25°C |
| Welding Power: | 100KVA | Net Weight: | 5T |
| High Light: | 10m/min Automatic Seam Welding Machine,steel drums automatic seam welder,10m/min automatic seam welder |
||
Automatic seam welding machine for steel drums Galvanized sheet steel
Automatic seam welding machine for steel drums

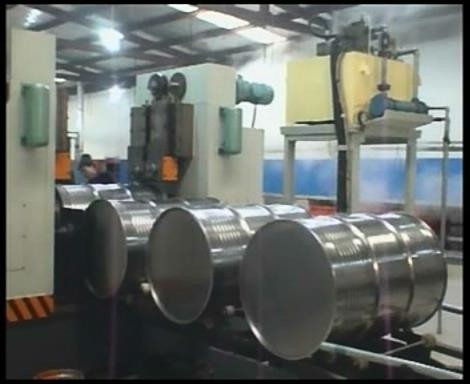

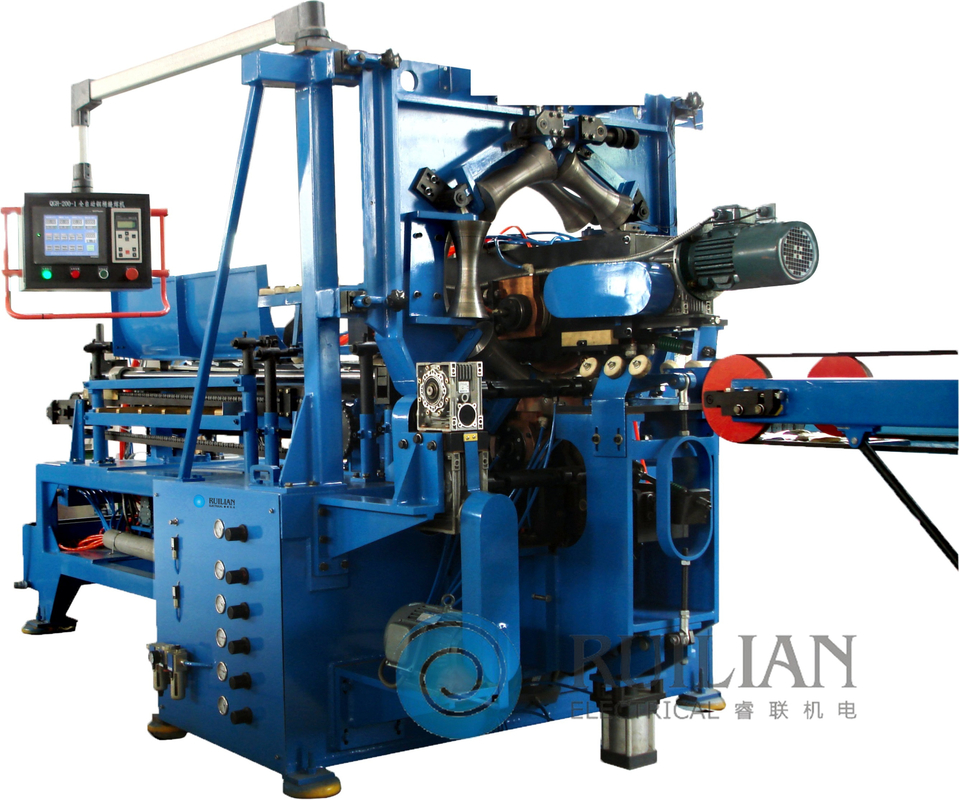

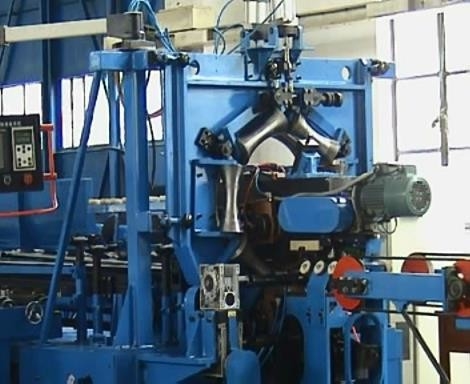

The RSD-600 steel drum automatic seam welding machine can complete automatic reclaiming, rounding, welding and other processes on the same platform. It is mainly used for high-speed welding of steel corrugated drums of 200 gallons and below in the chemical industry. This equipment is different from the copper wire transmission conductive structure of the RAU-400 welding machine. It uses the rolling welding process to weld the steel drum, and forms reinforced horizontal lines with a spacing of less than 1mm on the surface of the weld.
The welding control unit of the equipment adopts intermediate frequency welding, which can further ensure the professional requirements of the welding seam in terms of welding output.
The high-efficiency welding efficiency and unique weld structure of RSD-600 steel drum automatic seam welding machine have established its unparalleled criticality and importance in the field of steel drum welding. Moreover, it also has an outstanding reputation in the welding industry of the inner shell of the thin steel plate structure of household appliances, which is a technical barrier that cannot be broken by conventional resistance welding equipment.
|
Automatic seam welding machine for steel drums
Key words:
Automatic seam welding machine for steel drums
Resistance welding
Lntermediate frequency welding
Seam welding
Barrel welding
Sheet metal welding
Resistance welding
Product of Automatic seam welding machine for steel drums
