| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | Flange punching machine |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Air Duct Machine Flange Punching Machine | Processing Diameter: | Ø100~Ø1600mm |
|---|---|---|---|
| Processingplate Type: | Galvanized Sheet Steel/Stainless Steel Sheet | Processing Height: | ≤1000mm |
| Processing Thickness: | Galvanized Sheet Steel:0.5~1.5mm/Stainless Steel Sheet:0.5~1.5mm | Processingbeat: | 5~10/min |
| Cooling Water Flow Rate: | 0.4Mpa 8.5L/min | Compressed Air: | 0.8Mpa 600L/min ≤25°C |
| Power: | 10KVA | Net Weight: | 1.5T |
| Highlight: | Air Duct Flange punching machine,Flange punching machine 10KVA,OD 100mm Flange punching machine |
||
|
Air Duct Machine Flange punching machine
Key words
Automatic apron coughing machine
Curved ventilation duct
Plug-in air duct
Metal cold bending
Air Duct Machine of Flange punching machine
Flange punching machine

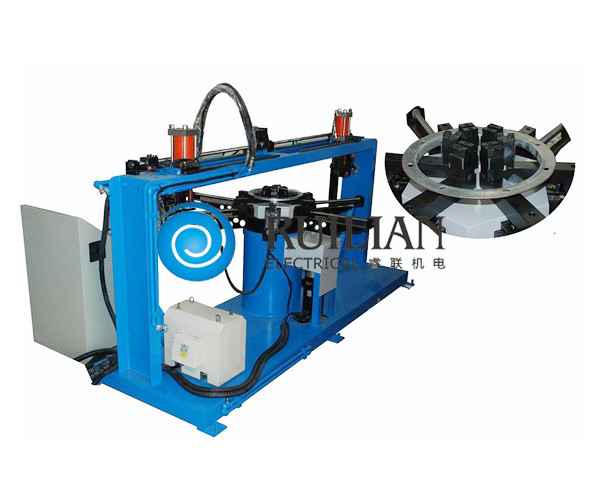

Flange punching machine is an automatic metal sheet cold-bending punching equipment for processing flange mounting holes of circular ventilation ducts. It is mainly used in the manufacturing industry of land air ducts and marine air ducts. After the flange is completed, the relevant parameters such as hole shape and spacing are set on the touch screen of the punching machine, and the punching machine is indexed and punched, and the accuracy can reach ±1mm. The circular air duct flange plays a pivotal role in the air duct manufacturing process, so we configure a variety of hole-shaped abrasives for customers to choose according to the actual working conditions.
