| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | Flange forming machine |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Air Duct Machine Flange Forming Machine | Processing Diameter: | Ø100~Ø1600mm |
|---|---|---|---|
| Processingplate Type: | Galvanized Sheet Steel/Stainless Steel Sheet | Processing Height: | ≤1000mm |
| Processing Thickness: | Galvanized Sheet Steel:0.5~1.5mm/Stainless Steel Sheet:0.5~1.5mm | Processingbeat: | 5~10/min |
| Cooling Water Flow Rate: | 0.4Mpa 8.5L/min | Compressed Air: | 0.8Mpa 600L/min ≤25°C |
| Power: | 25KVA | Net Weight: | 3T |
| Highlight: | flange forming machine 25KVA,Galvanized sheet steel flange forming machine,25KVA spiral duct machine |
||
Air Duct Machine Flange forming machine
|
Air Duct Machine Flange forming machine
Key words
Automatic apron coughing machine
Curved ventilation duct
Plug-in air duct
Metal cold bending
Air Duct Machine of Flange forming machine
Flange forming machine

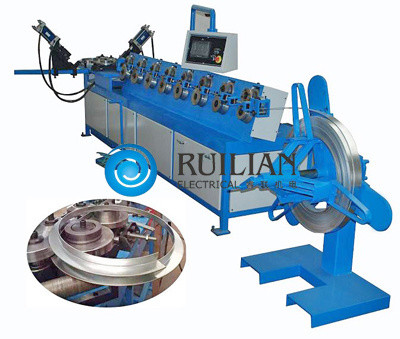

Flange forming machine is a metal sheet cold bending machine for processing circular ventilation duct flanges, which is mainly used in the manufacturing industry of land ducts and marine ducts. The reliable connection between circular air ducts is an important link in the construction process of air ducts, which not only determines the air flow quality of the air ducts, but also directly affects the service life of the air ducts and the surrounding environment. Therefore, the circular air duct flange is more important in the air duct manufacturing process. The flange forming machine adopts servo control feeding,By bending with cold-formed abrasive tools, rolling and cutting to length, the accuracy and diameter error can be controlled within 2mm. At the same time, it cooperates with the flange automatic punching machine to complete the indexing punching. After the finished product is welded, the flange can be put into use.
