| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | RJQ-100B |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Machining Diameter: | Ø80mm~Ø300mm(400mm Need To Be Customized) | Processingplate Type: | Low Carbon Sheet Steel/Galvanized Sheet Steel/Stainless Steel Sheet |
|---|---|---|---|
| Working Stroke: | 50mm | Machining Thickness: | Low Carbon Sheet Steel:0.4~0.8mm/Galvanized Sheet Steel:0.4~0.8mm/Stainless Steel Sheet:0.4~0.6mm |
| Type Of Product Processing: | Transfer Duct /Pressed Elow /Tee | Processing Speed: | ≤6/min |
| Spindle Speed: | 650rpm/min | Compressed Air: | 0.8Mpa 600L/min ≤25°C |
| Power: | 5KVA | Device Name: | Automatic Apron Coughing Machine Air Duct Machine |
| Highlight: | 50mm Air Duct Machine,Automatic apron coughing machine 5KVA,50mm Automatic apron coughing machine |
||
Air Duct Machine Automatic apron coughing machine
|
Air Duct Machine Automatic apron coughing machine
Key words
Automatic apron coughing machine
Curved ventilation duct
Plug-in air duct
Metal cold bending
T tee
Product of Air Duct Machine Automatic apron coughing machine

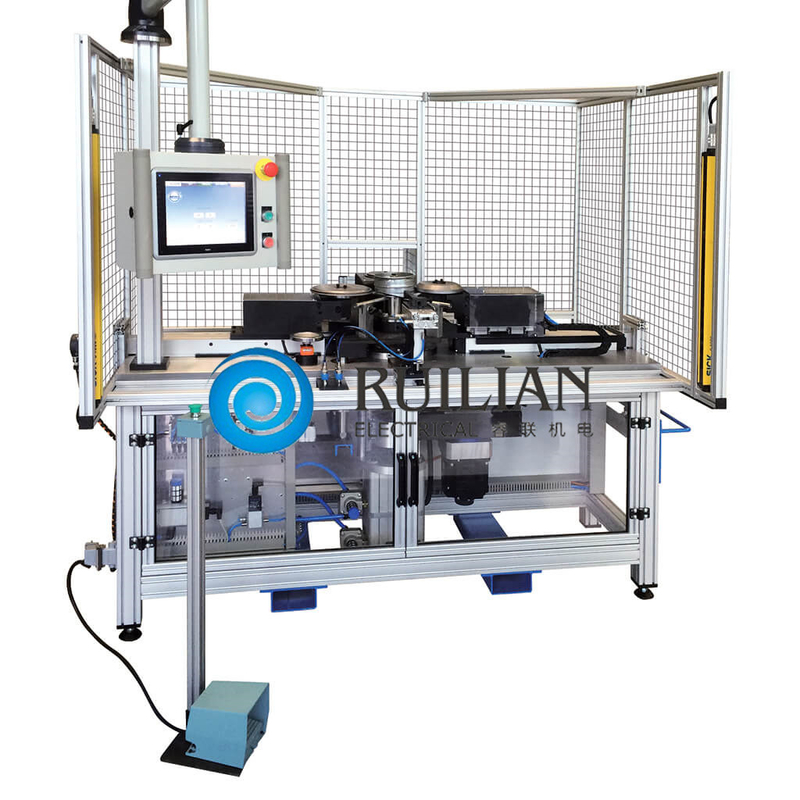

Automatic apron coughing machine
RJQ-100B is the basic model of RJQ-100 automatic apron machine, its operation process can be unattended, but when it is necessary to adjust the equipment, when changing product specifications, it needs to manually adjust the flanging, necking and occlusal compression the corresponding position of the wheel. The automatic apron forming machine is used in conjunction with the RF-80J-1/2 air duct arc seam welding machine to meet the occlusion requirements of the air duct stamping elbow sealing strip and the welding stamping elbow.RJQ-100B automatic apron forming machine can complete the process steps of stamping elbow flanging, necking, rib expansion, apron occlusion in sequence on the working platform. It can process stamping elbows, welded straight pipes and air duct tees.
Equipment man-machine interface control, welding control unit and other aspects are all independently developed and designed, and the unique 300 processing models can meet the unique needs of different environmental processes to the greatest extent.
Production efficiency is comparable to the same type of products in the United States and abroad, and the design is easier to use in terms of control, ensuring that the high-speed and high-efficiency replacement and maintenance characteristics of the model are also taken into account.
The automatic RJQ-100B is a highly integrated cold bending process machine. It is widely used in the processing of industrial air duct accessories, shipbuilding and special requirements for land use air ducts. It's a modern air duct. It is a fundamental processing equipment indispensable in manufacturing. Its excellent performance, superior processing quality and efficient processing speed are important process equipment in the manufacture of products for large-scale air duct processing companies.
