| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | IF welding controller 4000S |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Custom Welding Equipment IF Welding Controller | Weld Thickness: | Tin-plated Steel Sheet :0.2~2.0mm/Low Carbon Sheet Steel :0.2~2.0mm/Galvanized Sheet Steel :0.2~2.0mm/ Stainless Steel Sheet :0.2~2.0mm |
|---|---|---|---|
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 400A~4000A |
| Highlight: | Resistance spot welding Custom Welding Equipment,IF welding controller 4000A,Resistance spot welding IF welding controller |
||
|

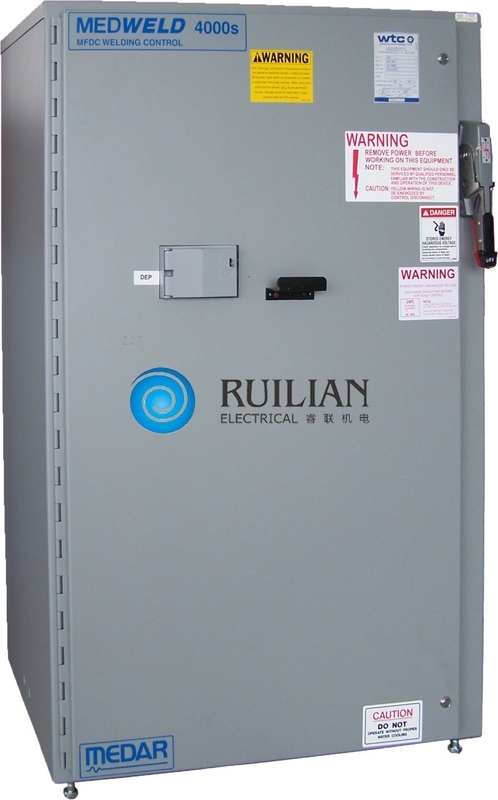

Custom Welding Equipment IF welding controller
Key word:
Resistance spot welding
Resistance welding projection welding
Sheet metal welding
Welding controller
Custom Welding Equipment Of IF welding controller
IF welding controller
The welding controller is a necessary condition for the upgrade of traditional AC spot welding, and it is also the mainstay of medium frequency resistance welding technology. The s series welding controller adopts the thyristor module capacitor charging technology, and its reliability and stability are significantly improved compared with similar products. The current capacity level (calculated by 10% duty cycle) is from 400A to 4000A. Because of the continuous upgrading of controller chips, the hardware cost is also significantly reduced, which makes the promotion prospects in various industrial sectors very promising.Taking the 2000A controller as an example, if it is equipped with a welding controller with a ratio of 1:38, the secondary welding current can reach 76000A, which provides a strong support for light metal welding with high quality requirements.
The time regulator in the intermediate frequency controller adopts a new high-speed microprocessor. Not only can it be configured to suit the needs of a variety of welding applications, but it is also sufficient to handle algorithmic requirements for welding, such as Thermal Expansion Force Feedback (TFF) and Constant Heat Control (CHC), which are particularly prominent in welding aluminum sheets.
