| Place of Origin: | Hanzhong Shanxi China |
| Brand Name: | RUILIAN |
| Model Number: | AC welding controller 200S |
| Minimum Order Quantity: | 1 devices |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing in wooden cases |
| Payment Terms: | T/T |
| Supply Ability: | 1+ devices+a month |
| Device Name: | Custom Welding Equipment AC Welding Controller | Weld Thickness: | Tin Plated Steel Sheet :0.2~2.0mm/Low Carbon Sheet Steel :0.2~2.0mm/Galvanized Sheet Steel :0.2~2.0mm/ Stainless Steel Sheet :0.2~2.0mm |
|---|---|---|---|
| Compressed Air: | 0.8Mpa 600L/min ≤25°C | Welding Power: | 400A~4000A |
| Highlight: | Tin plated steel sheet AC welding controller,AC welding controller 400A,Tin plated steel sheet custom welder |
||
|
Custom Welding Equipment AC welding controller
Key word:
Resistance spot welding
Resistance welding projection welding
Sheet metal welding
Welding controller
Custom Welding Equipment Of AC welding controller

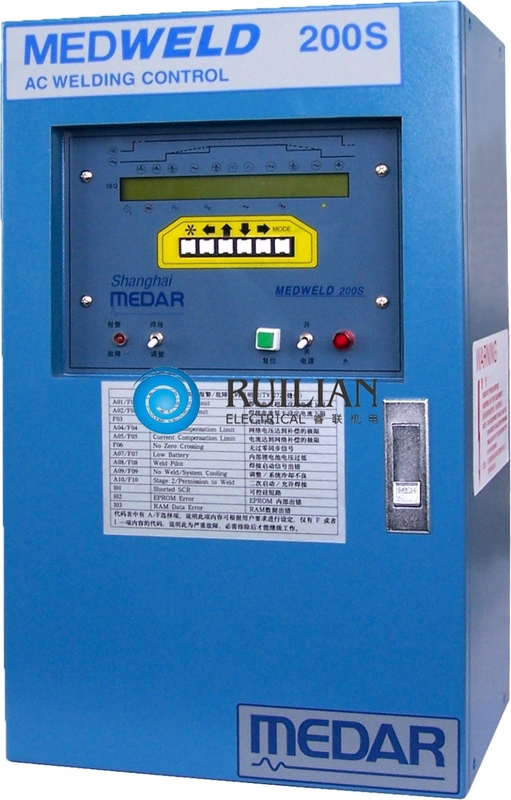

AC welding controller
The welding controller is a necessary condition for the upgrade of traditional AC spot welding, and it is also the mainstay of medium frequency resistance welding technology. The s series welding controller adopts the thyristor module capacitor charging technology, and its reliability and stability are significantly improved compared with similar products. The current capacity level (calculated by 10% duty cycle) is from 400A to 4000A. Because of the continuous upgrading of controller chips, the hardware cost is also significantly reduced, which makes the promotion prospects in various industrial sectors very promising.Taking the 2000A controller as an example, if it is equipped with a welding controller with a ratio of 1:38, the secondary welding current can reach 76000A, which provides a strong support for light metal welding with high quality requirements.
